THE BOB-LIFT LOADER RANGE

MINI SKID STEER
LOADERS.

Stand-on and seated models, on tracks or wheels, rated 200 to 500 kg. Start with the work ahead, then compare the models.Download the loader cataloguePDF · 5.5 MB

The BOB-LIFT skid steer loader range — eight compact models, stand-on tracked, seated tracked and seated wheeled, from 290 to 650 kg max load.
Running gear
Operator
Rated load

9 results

BL-T360-H

Tracked Stand-on Mini Skid Steer Loader

Rated load
200 kg
Bucket
0.15 m³
Power
7.6 kW

BL-T460-H

Tracked Stand-on Mini Skid Steer Loader

Rated load
300 kg
Bucket
0.15 m³
Power
16.8 kW

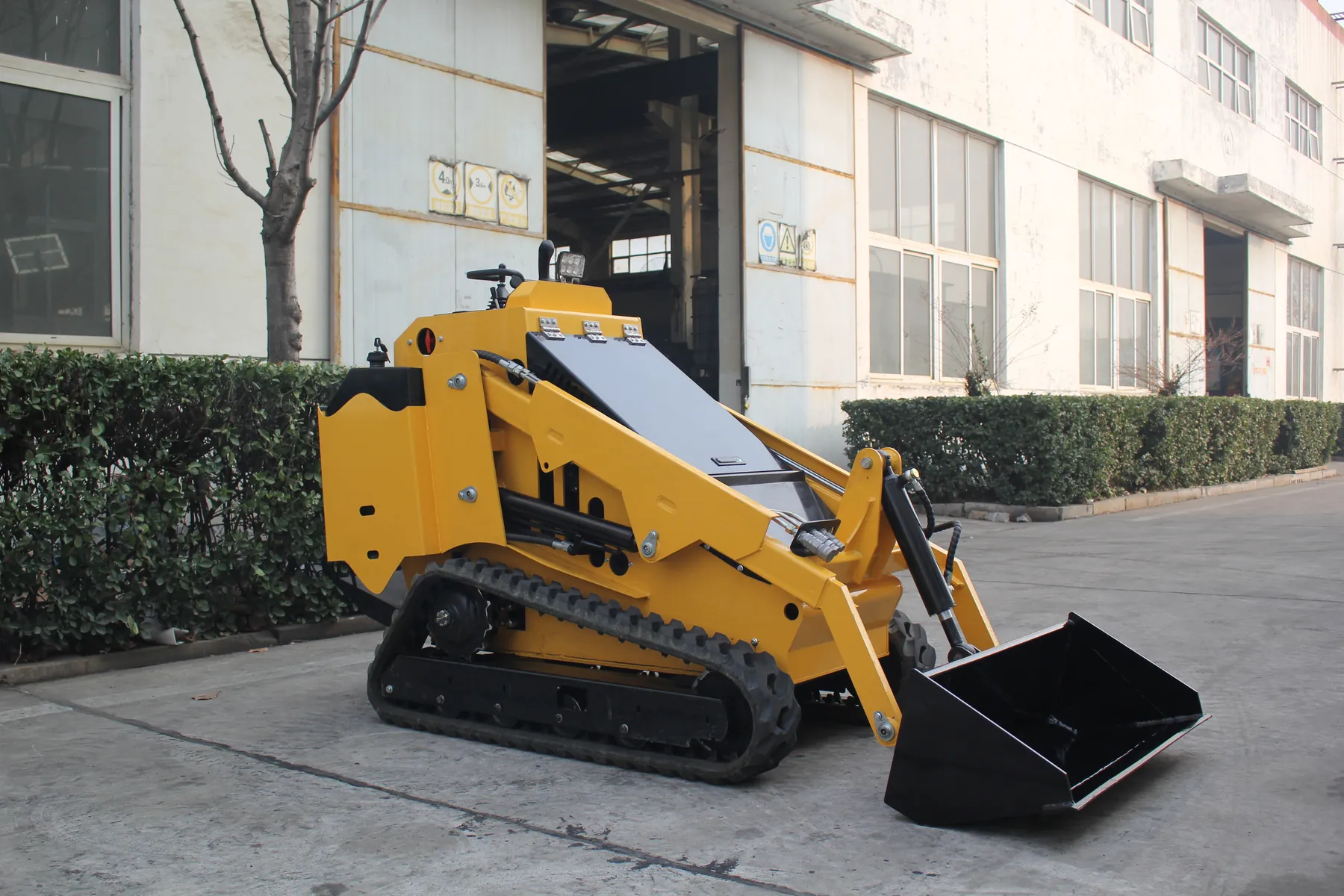

BL-T750-H

Tracked Stand-on Mini Skid Steer Loader

Rated load
410 kg
Bucket
0.15 m³
Power
18.6 kW

BL-S750-H

Wheeled Stand-on Mini Skid Steer Loader

Rated load
400 kg
Bucket
0.15 m³
Power
18.6 kW

BL-T1000-H

Tracked Stand-on Mini Skid Steer Loader

Rated load
500 kg
Bucket
0.19 m³
Power
17.8 kW

BL-S390-C

Wheeled Seated Mini Skid Steer Loader

Rated load
260 kg
Bucket
0.1 m³
Power
7.6 kW

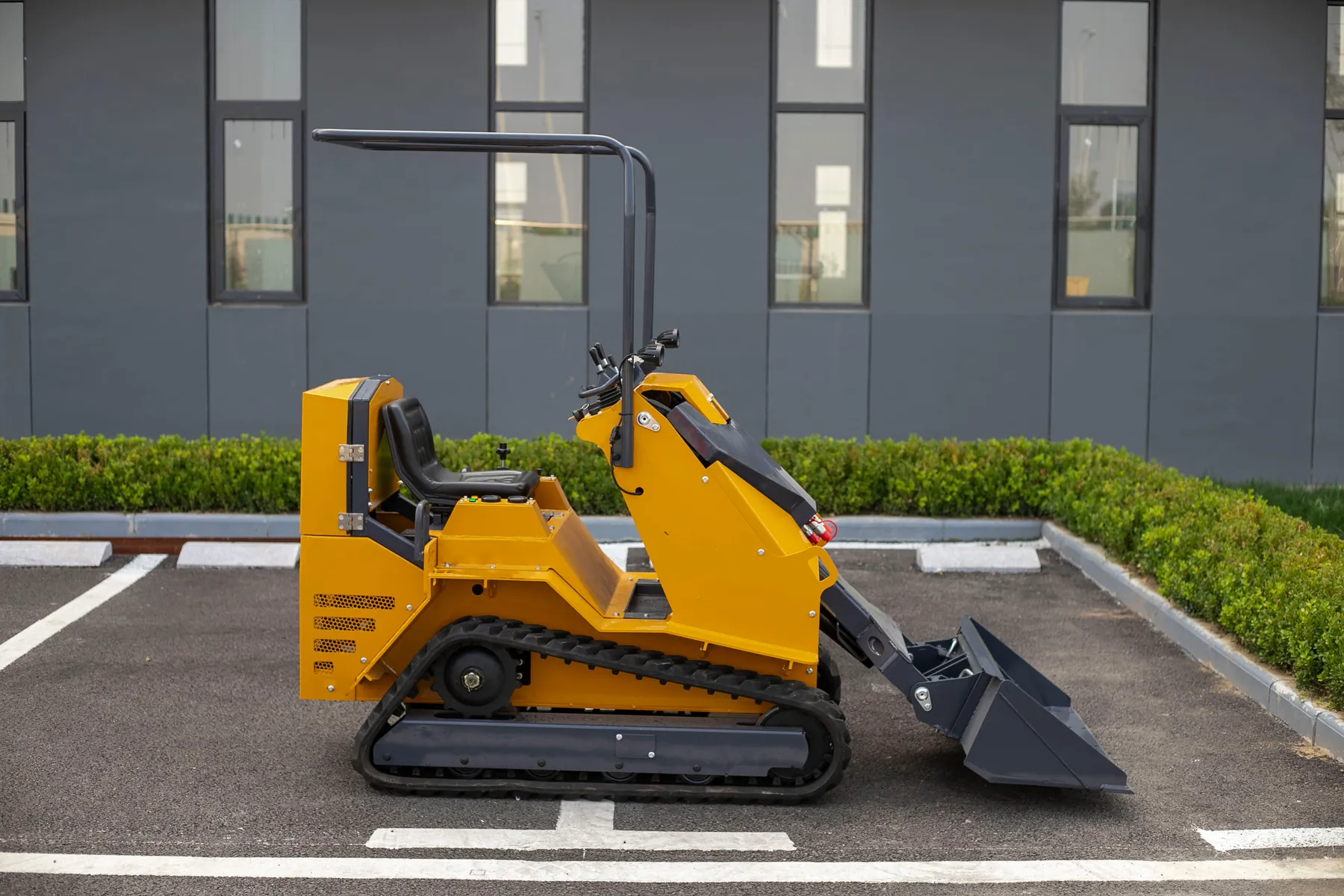

BL-T390-C

Tracked Seated Mini Skid Steer Loader

Rated load
250 kg
Bucket
0.1 m³
Power
7.6 kW

BL-S490-C

Wheeled Seated Mini Skid Steer Loader

Rated load
250 kg
Bucket
0.1 m³
Power
16.8 kW

BL-T490-C

Tracked Seated Mini Skid Steer Loader

Rated load
250 kg
Bucket
0.1 m³
Power
16.8 kW

ABOUT THE LOADERS

MADE FOR THE
TIGHT SPOTS.

A skid steer turns by running its left and right tracks or wheels at different speeds, so it spins on the spot. We build ours in Xuzhou for yards, gardens, greenhouses and building sites where a full-size loader won’t fit.

MACHINE WIDTH

NARROW BY DESIGN.

Six of our nine loaders are under one metre wide across the body, and the widest is 1,090 mm. The narrowest, BL-T360-H, stays under a metre with its bucket fitted too.

1,000 mm

800 mmGate, path or doorway1,300 mm

6 of 9 loaders fit through 1,000 mm · 1 with the bucket fitted

Ask about your site

Widths from each model’s published specifications. Where a bucket is wider than your opening, its line turns orange.

Body widthBucket widthYour opening
  1. BL-T360-H 930 mmBucket 906 mm
  2. BL-T390-C 955 mmBucket 1,050 mm 50 mm over
  3. BL-S390-C 959 mmBucket 1,050 mm 50 mm over
  4. BL-T1000-H 960 mmBucket 1,240 mm 240 mm over
  5. BL-S750-H 985 mmBucket 1,270 mm 270 mm over
  6. BL-T750-H 985 mmBucket 1,270 mm 270 mm over
  7. BL-S490-C 1,089 mmBucket 1,150 mm
  8. BL-T490-C 1,089 mmBucket 1,150 mm
  9. BL-T460-H 1,090 mmBucket 1,100 mm

ATTACHMENTS / 26 TOOLS

ONE LOADER.
MANY JOBS.

Our loaders take their tools through a quick-attach plate and auxiliary hydraulic lines, so the bucket comes off and a fork, auger or sweeper goes on in minutes. Attachments are quoted with your loader and matched to its hydraulics.

Ask which suit your model

WHERE IT WORKS

  • Renovation and indoor work

    Inside buildings, basements and car parks: break out floors, clear rubble and move materials where a full-size loader can’t go.

    Hydraulic breaker · 4-in-1 bucket · Grapple bucket
  • Gardens and landscaping

    Rubber tracks spread the weight on lawns and soft soil. Dig planting holes, level beds, turn soil and gather cuttings.

    Auger · Leveller · Rotary tiller · Hydraulic grapple
  • Farms, greenhouses and barns

    Narrow enough for greenhouse aisles and livestock sheds: clean out, move feed and carry bales.

    4-in-1 bucket · Pallet forks · Hydraulic grapple
  • Streets and public spaces

    Works on footpaths, lanes and housing estates without closing the road: patch repairs, drain clearing and snow.

    Hydraulic breaker · Sweeper · Snow blower
  • Yards and warehouses

    Moves pallets and clears scrap and offcuts in narrow aisles and busy yards.

    Pallet forks · Grapple bucket · Sweeper
  • Alongside bigger machines

    Takes the corners, indoor and finishing work on small sites: footings, trenches, backfill and clean-up.

    Backhoe · Trencher · Trench filler

Dig & trench 5

  • 4-in-1 bucketDig, grab, level and doze
  • BackhoeSmall excavations and pits
  • AugerHoles for posts and planting
  • TrencherNarrow trenches for cables and pipes
  • Trench fillerBackfill trenches after the pipe is in

Lift & carry 6

  • Pallet forksPallets, bagged cement, bales
  • Hydraulic grappleStraw, branches and loose debris
  • Grapple bucketRubble, logs and awkward loads
  • High-dump bucketTip loads into tall trucks and hoppers
  • Lifting jibLift and place with a chain or sling
  • Tow hitchMove trailers around the site

Break & clear 6

  • Hydraulic breakerConcrete, paving and frozen ground
  • RipperLoosen compacted soil and roots
  • MulcherClear scrub and small trees
  • Wood chipperChip branches and prunings on the spot
  • Brush cutterCut back overgrown ground
  • Log splitterSplit firewood on the spot

Ground & lawn 5

  • LevellerGrade and spread loose material
  • Rotary tillerTurn soil for beds and planting
  • Soil conditionerPrepare a seed bed in one pass
  • Lawn aeratorOpen up compacted turf
  • Lawn mowerMow large areas of grass

Sweep, snow & mix 4

  • SweeperYards, roads and light snow
  • Snow blowerClear paths and drives
  • Concrete mixerMix small batches on site
  • Mixing bucketMix and pour in one attachment

Hydraulic flow differs from model to model, so not every attachment suits every loader. We confirm the match when we quote your machine.

HOW OUR LOADERS ARE MADE

FROM STEEL
TO SHIPMENT.

Photographed at our factory in Xuzhou, Jiangsu: the steps every loader goes through before it leaves.

  1. 01Cut and weld
  2. 02Form the bucket
  3. 03Paint to order
  4. 04Fit the hydraulics
  5. 05Assemble
  6. 06Ready to ship
Welder at work on a loader frame at the BOB-LIFT factory in Xuzhou, sparks flying from the torch
01 / 06Cut and weld

Frames start as steel tube and plate, cut and welded by hand on the fabrication floor.

Bare manganese-steel loader bucket on the workshop floor before painting
02 / 06Form the bucket

Buckets are shaped from manganese steel plate and welded before they go to paint.

Seated loader frames painted blue for a customer order, waiting for assembly
03 / 06Paint to order

Frames and lift arms are painted in the colour on each order before they reach the assembly floor.

Close-up of a yellow lift arm pivot with a hydraulic cylinder and hose fittings
04 / 06Fit the hydraulics

Cylinders, hoses and fittings are routed along the lift arms, where the machine does its work.

Technicians assembling a black tracked loader frame on the assembly floor
05 / 06Assemble

Frames, engines, tracks and arms come together on the assembly floor, one station at a time.

Finished mini skid steer loaders in customer-ordered red, yellow and blue at the BOB-LIFT factory in Xuzhou
06 / 06Ready to ship

Finished loaders, each in the colour its customer ordered, wait for packing and export.

PUBLISHED FIGURES / MINI SKID STEER LOADERS

COMPARE THE RANGE.

Figures from the BOB-LIFT technical sheets. Engine brand and attachments are set per order, so confirm your configuration with our team.

ModelBL-T360-HBL-T360-H Tracked Stand-on Mini Skid Steer LoaderBL-S490-CBL-S490-C Wheeled Seated Mini Skid Steer LoaderBL-T390-CBL-T390-C Tracked Seated Mini Skid Steer LoaderBL-T490-CBL-T490-C Tracked Seated Mini Skid Steer LoaderBL-S390-CBL-S390-C Wheeled Seated Mini Skid Steer LoaderBL-T460-HBL-T460-H Tracked Stand-on Mini Skid Steer LoaderBL-S750-HBL-S750-H Wheeled Stand-on Mini Skid Steer LoaderBL-T750-HBL-T750-H Tracked Stand-on Mini Skid Steer LoaderBL-T1000-HBL-T1000-H Tracked Stand-on Mini Skid Steer Loader
Rated load200 kg250 kg250 kg250 kg260 kg300 kg400 kg410 kg500 kg
Lifting capacity300 kg350 kg300 kg350 kg290 kg375 kg450 kg525 kg650 kg
Bucket capacity0.15 m³0.1 m³0.1 m³0.1 m³0.1 m³0.15 m³0.15 m³0.15 m³0.19 m³
Engine power7.6 kW16.8 kW7.6 kW16.8 kW7.6 kW16.8 kW18.6 kW18.6 kW17.8 kW
Machine weight650 kg850 kg750 kg950 kg650 kg730 kg1,000 kg1,100 kg1,250 kg
Machine width930 mm1,089 mm955 mm1,089 mm959 mm1,090 mm985 mm985 mm960 mm
Overall height1,226 mm1,300 mm1,300 mm1,300 mm1,300 mm1,267 mm1,550 mm1,550 mm1,548 mm
Length with bucket1,906 mm2,573 mm2,281 mm2,573 mm2,281 mm2,200 mm2,700 mm2,836 mm2,691 mm
Gradeability30°25°25°25°25°30°25°25°25°
Max travel speed6 km/h6 km/h5 km/h5 km/h6 km/h6 km/h6 km/h5 km/h6 km/h
Running gearRubber tracksRubber tyresRubber tracksRubber tracksRubber tyresRubber tracksWheelsRubber tracksRubber tracks
Hydraulic pressure17 MPa16 MPa16 MPa16 MPa16 MPa17 MPa18 MPa18 MPa20 MPa
Engine optionsKOOP / Rato / Briggs & StrattonKOOP / Rato / Briggs & Stratton VanguardKOOP / Rato / Briggs & StrattonKOOP / Rato / Briggs & Stratton VanguardKOOP / Rato / Briggs & StrattonZongshen / KOOP / Rato / Briggs & StrattonLaidong 385B / Yanmar 3TNV80 / Kubota D1105Laidong 385B / Yanmar 3TNV80 / Kubota D1105Yanmar 3TNV80 / Kubota D1105
Power by engineKOOP 7.6 kW / Rato 7.9 kW / Briggs & Stratton 9.92 kWKOOP 15 kW / Rato 16.8 kW / Briggs & Stratton Vanguard 17 kWKOOP 7.6 kW / Rato 7.9 kW / Briggs & Stratton 9.92 kWKOOP 15 kW / Rato 16.8 kW / Briggs & Stratton Vanguard 17 kWKOOP 7.6 kW / Rato 7.9 kW / Briggs & Stratton 9.92 kWZongshen 17 kW / KOOP 15 kW / Rato 16.8 kW / Briggs & Stratton 17 kWLaidong 18.6 kW / Yanmar 18.4 kW / Kubota 18.5 kWLaidong 18.6 kW / Yanmar 17.8 kW / Kubota 17.1 kWYanmar 17.8 kW / Kubota 17.1 kW
Engine type1-cylinder, 4-stroke2-cylinder, 4-stroke1-cylinder, 4-stroke2-cylinder, 4-stroke1-cylinder, 4-stroke2-cylinder, 4-stroke3-cylinder, 4-stroke, naturally aspirated3-cylinder, 4-stroke3-cylinder, 4-stroke
FuelPetrol / dieselPetrol / dieselPetrol / dieselPetrol / dieselPetrol / dieselPetrol / dieselDieselDieselDiesel
Fuel tank5 L10 L5 L10 L5 L10 L20 L20 L20 L
StartingElectric startElectric startElectric startElectric startElectric startElectric startElectric startElectric startElectric start
Emission standardEPA Tier 4 / EU Stage VEPA Tier 4 / EU Stage VEPA Tier 4 / EU Stage VEPA Tier 4 / EU Stage VEPA Tier 4 / EU Stage VEPA Tier 4 / EU Stage VEPA Tier 4 / EU Stage VEPA Tier 4 / EU Stage VEPA Tier 4 / EU Stage V
Working height1,650 mm1,650 mm1,830 mm1,700 mm1,600 mm1,650 mm2,140 mm2,230 mm2,102 mm
Max dumping height1,340 mm1,382 mm1,404 mm1,402 mm1,376 mm1,340 mm1,700 mm1,826 mm1,522 mm
Height with arms raised2,230 mm2,466 mm2,488 mm2,489 mm2,460 mm2,230 mm2,920 mm2,880 mm2,794 mm
Length without bucket1,466 mm2,100 mm1,880 mm2,100 mm1,880 mm1,855 mm2,070 mm2,100 mm1,981 mm
Bucket width906 mm1,150 mm1,050 mm1,150 mm1,050 mm1,100 mm1,270 mm1,270 mm1,240 mm
Ground clearance160 mm200 mm219 mm220 mm193 mm160 mm240 mm230 mm200 mm
Operator stationStand-on platformSeatSeatSeatSeatStand-on platformStand-on platform with retractable footplateStand-on platformStand-on platform
ControlsJoystick operationJoystick operationJoystick operationJoystick operationJoystick operationJoystick operationJoystick operationJoystick operationJoystick operation
Body materialManganese steelManganese steelManganese steelManganese steelManganese steelManganese steelManganese steelManganese steelManganese steel
Bucket materialManganese steelManganese steelManganese steelManganese steelManganese steelManganese steelManganese steelManganese steelManganese steel
Hydraulic pumps——————Two piston pumps and one gear pump——
EnquireQuote Quote Quote Quote Quote Quote Quote Quote Quote

HOW TO READ A MODEL NAME

THE NAME
TELLS YOU HOW.

Every loader name spells out how the machine moves and where you stand to drive it. BL-T360-H is a tracked, 360-class loader you drive standing up.

BL
BOB-LIFT
T/S
T Tracked
S Wheeled
360
Size class
360 to 1000
H/C
H Hand · stand-on
C Cabin · seated
