Shipping
- 20GP container
- 6 machines
- 40HQ container
- 22 machines
Ships in 8–30 working days from order. Loading figures are approximate; we confirm the plan with your order.
Containers and paperwork
MINI SKID STEER LOADER
BL-T750-HTracked Stand-on Mini Skid Steer Loader
TTracked750Size classHHand · stand-onHow model names work
- Rated load
- 410 kg
- Bucket capacity
- 0.15 m³
- Engine power
- 18.6 kW
Or message usWhatsApp +86 158 5249 9415info@boblift.com
- 12‑month whole-machine warranty
- Ships in 8–30 working days
- Order from 1 unit
- Shipping & warranty
- Catalogue PDF · 5.5 MB
Confirm your configuration and current availability with our team.
BL-T750-H overview
A CLOSER LOOK
AT YOUR NEXT MACHINE.
BL-T750-H product film
Watch it work 4 videos
The BL-T750-H is a diesel mini skid steer loader with a 2,230 mm working height, in a body 985 mm wide (1,270 mm at the bucket). Loading trucks and skips, spreading aggregate and running hydraulic attachments are its work, on sites where access is still tight.
A three-cylinder diesel powers it: a Laidong 385B (18.6 kW), Yanmar 3TNV80 (17.8 kW) or Kubota D1105 (17.1 kW). It is rated for 410 kg per load and lifts up to 525 kg. The hydraulic system works at 18 MPa, against 16–17 MPa on our petrol models. The machine weighs 1,100 kg and runs on rubber tracks at up to 5 km/h, with the operator standing at the rear.
Coming from the BL-T460-H stand-on loader, you gain 110 kg of rated load, diesel engines and 580 mm of working height. The BL-T1000-H has more capacity: a 500 kg rated load against 410 kg, a 0.19 m³ bucket against 0.15 m³, and a body 25 mm narrower than the BL-T750-H. The BL-T750-H keeps the higher working height, 2,230 mm against 2,102 mm. For paved yards and other hard ground, the BL-S750-H puts the same stand-on layout on wheels, with a 400 kg rated load.
- 2,230 mm working height
580 mm more working height than the BL-T460-H stand-on loader.
- 525 kg lifting capacity
With a 410 kg rated load and an 18 MPa hydraulic system.
- Three diesel options
Laidong 18.6 kW, Yanmar 17.8 kW or Kubota 17.1 kW.
BL-T750-H specifications
KNOW YOUR
MACHINE.
Figures from the BOB-LIFT technical sheet supplied for this range. Confirm the final specification before ordering.
Engine brand, attachments and configuration are set per order. Tell us your preferred engine and the work you have in mind.
Compare every loaderPerformance
- Rated load
- 410 kg
- Lifting capacity
- 525 kg
- Bucket capacity
- 0.15 m³
- Max travel speed
- 5 km/h
- Hydraulic pressure
- 18 MPa
- Gradeability
- 25°
- Machine weight
- 1,100 kg
Build
- Running gear
- Rubber tracks
- Operator station
- Stand-on platform
- Controls
- Joystick operation
- Body material
- Manganese steel
- Bucket material
- Manganese steel
Details
- Power by engine
- Laidong 18.6 kW / Yanmar 17.8 kW / Kubota 17.1 kW
Engine
- Engine options
- Laidong 385B / Yanmar 3TNV80 / Kubota D1105
- Engine power
- 18.6 kW
- Engine type
- 3-cylinder, 4-stroke
- Fuel
- Diesel
- Fuel tank
- 20 L
- Starting
- Electric start
- Emission standard
- EPA Tier 4 / EU Stage V
Dimensions
- Working height
- 2,230 mm
- Max dumping height
- 1,826 mm
- Height with arms raised
- 2,880 mm
- Length with bucket
- 2,836 mm
- Length without bucket
- 2,100 mm
- Machine width
- 985 mm
- Bucket width
- 1,270 mm
- Overall height
- 1,550 mm
- Ground clearance
- 230 mm
Attachments for the BL-T750-H
ONE LOADER.
MANY JOBS.
The bucket comes off the quick-attach plate and a fork, auger or breaker goes on. These attachments suit this loader's work; we confirm each one against its hydraulic flow when we quote.
See all 26 attachments
4-in-1 bucketDig, grab, level and doze
Pallet forksPallets, bagged cement, bales
AugerHoles for posts and planting
Hydraulic breakerConcrete, paving and frozen ground- TrencherNarrow trenches for cables and pipes
- SweeperYards, roads and light snow
BL-T750-H photographs
SEE IT
UP CLOSE.
11 photographs: at work, details. Select one to view it larger.

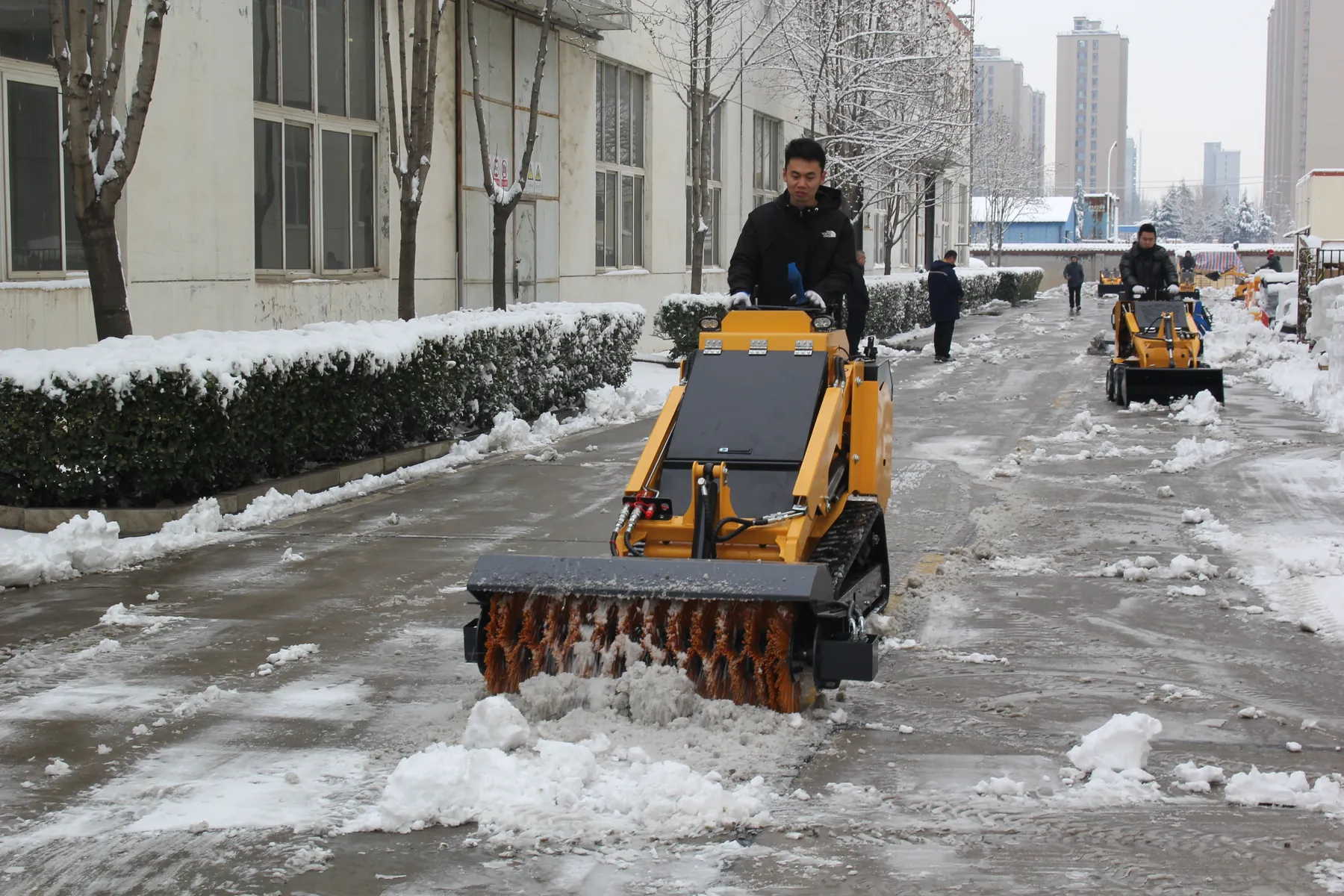

Clearing snow with a sweeper
Roller brush in snow

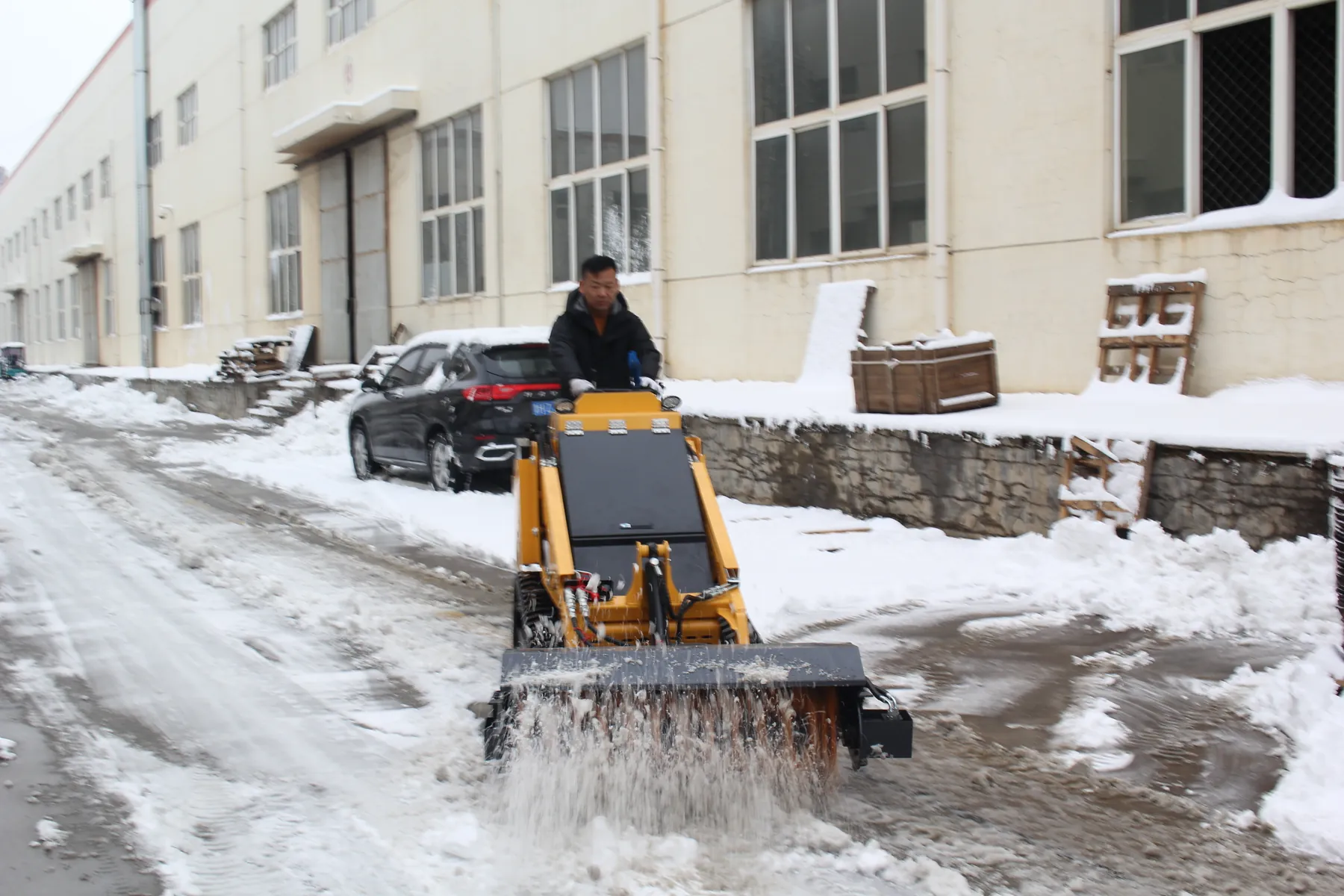

Snow clearing on a road

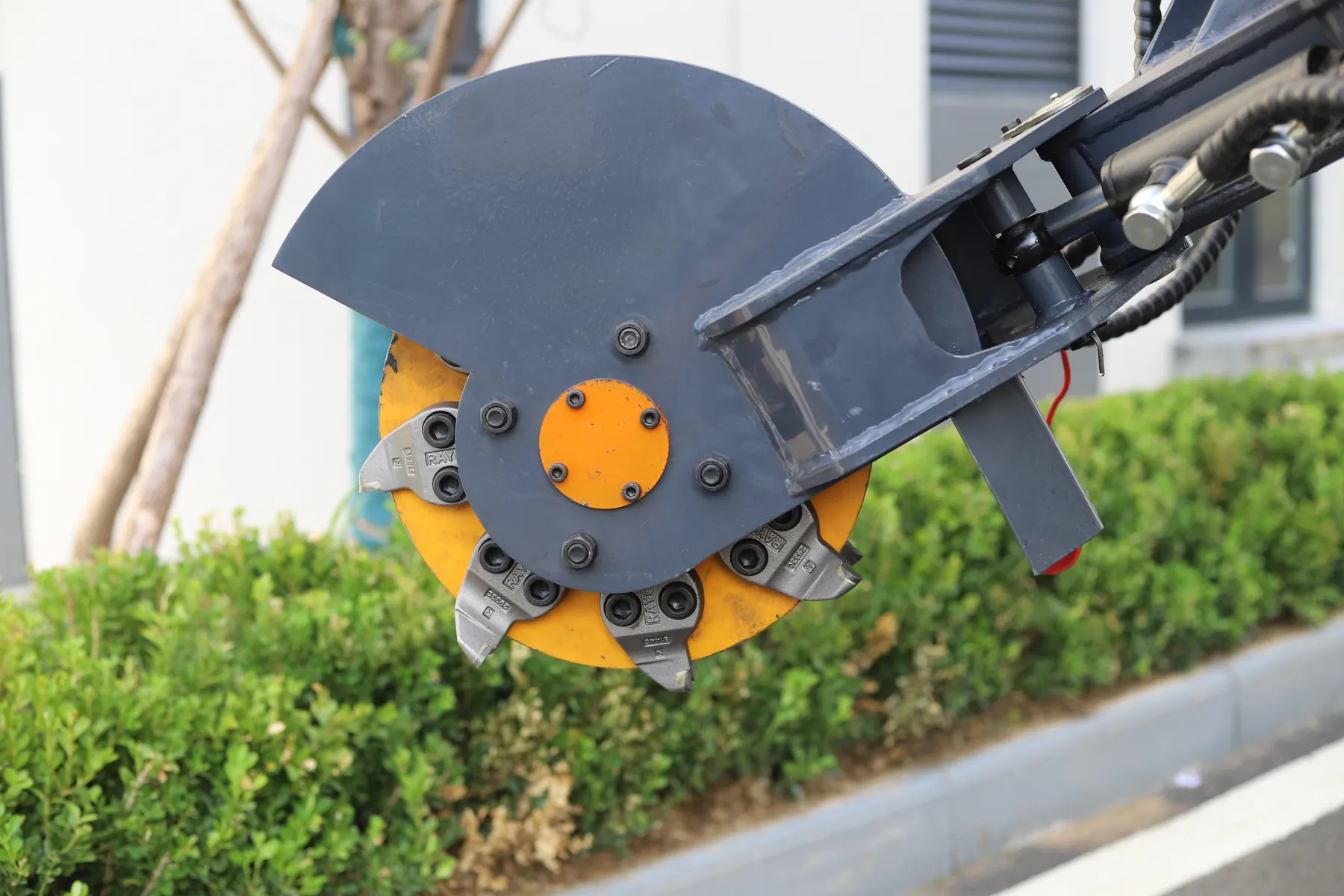

Stump grinder

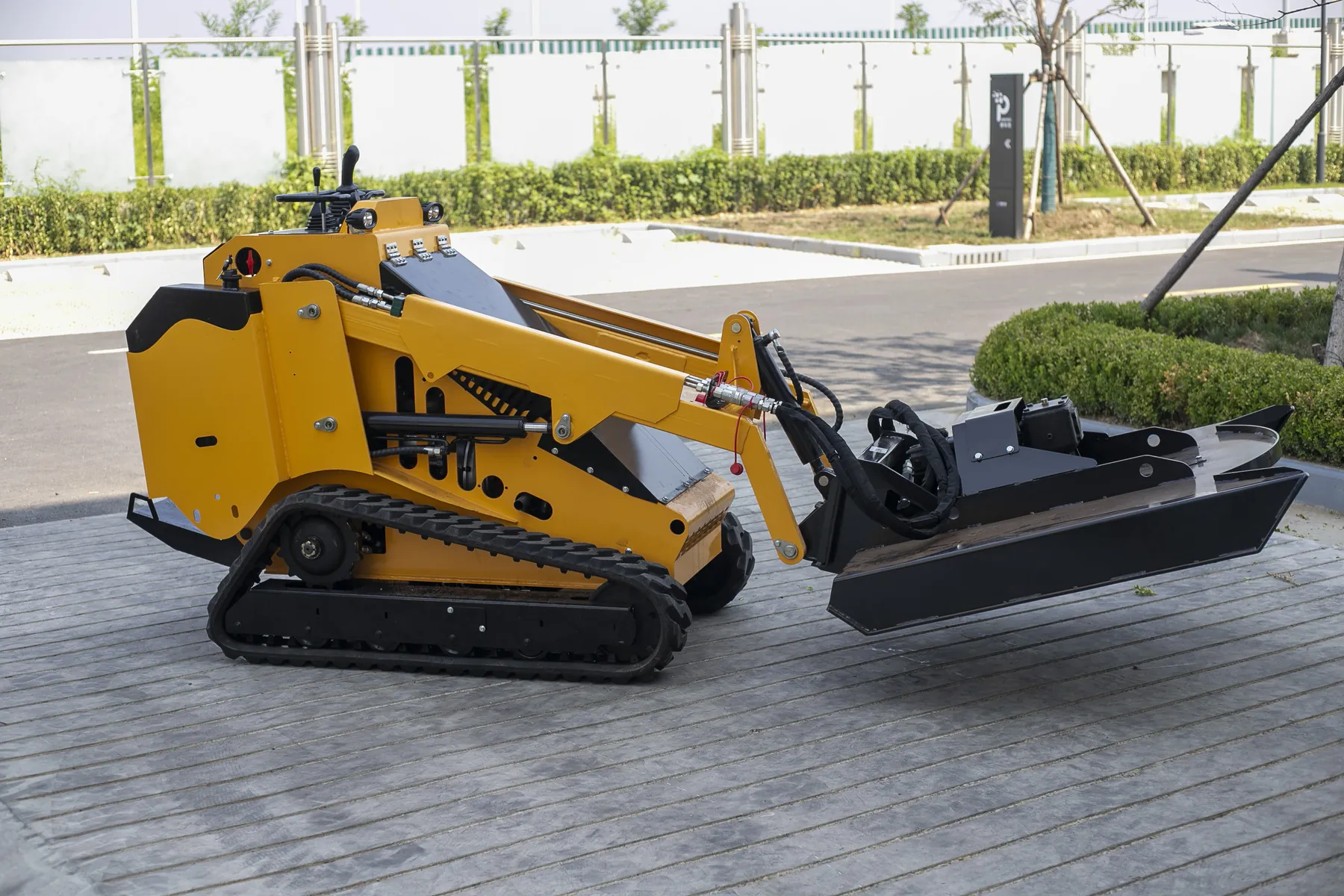

Brush cutter

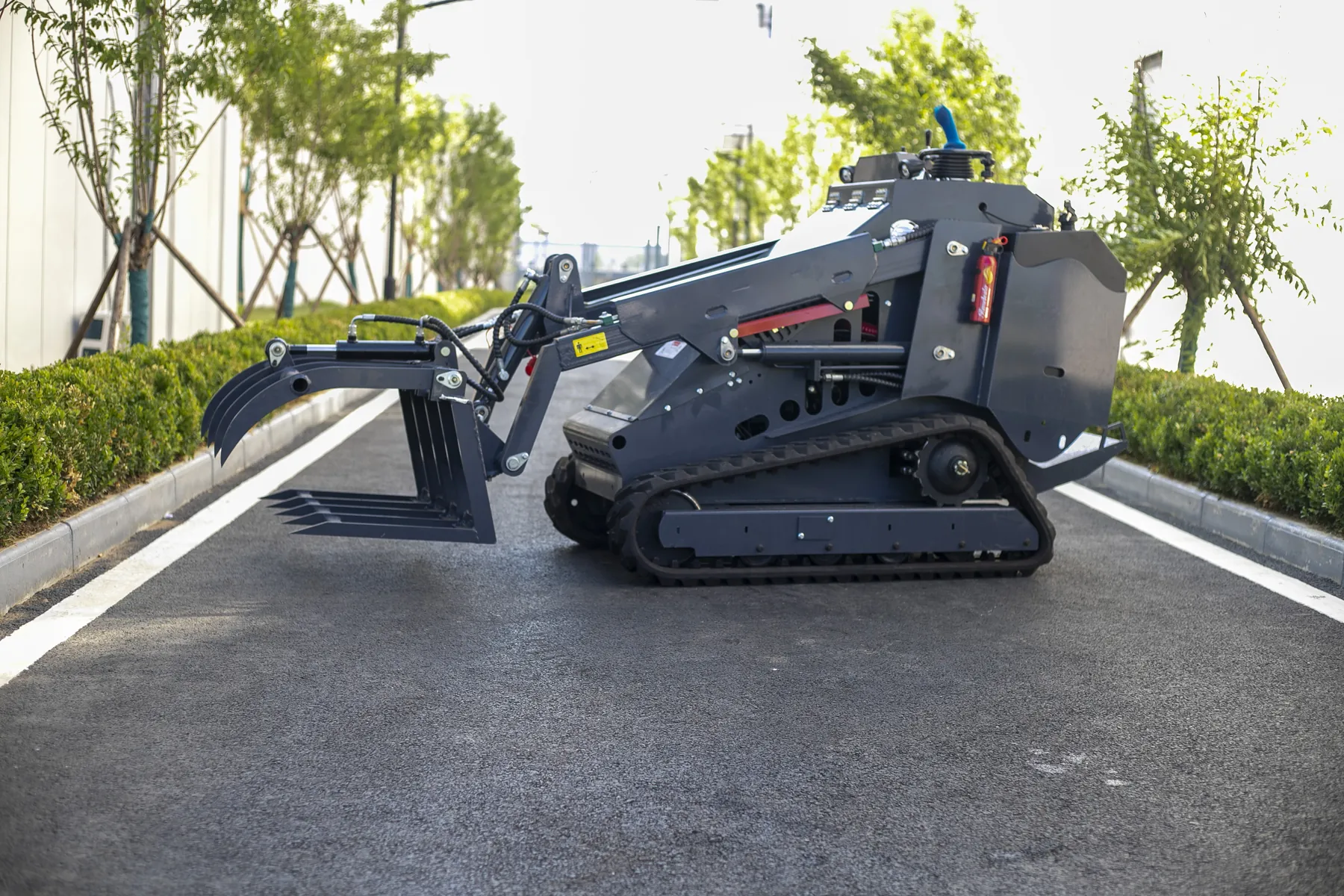

Log grapple

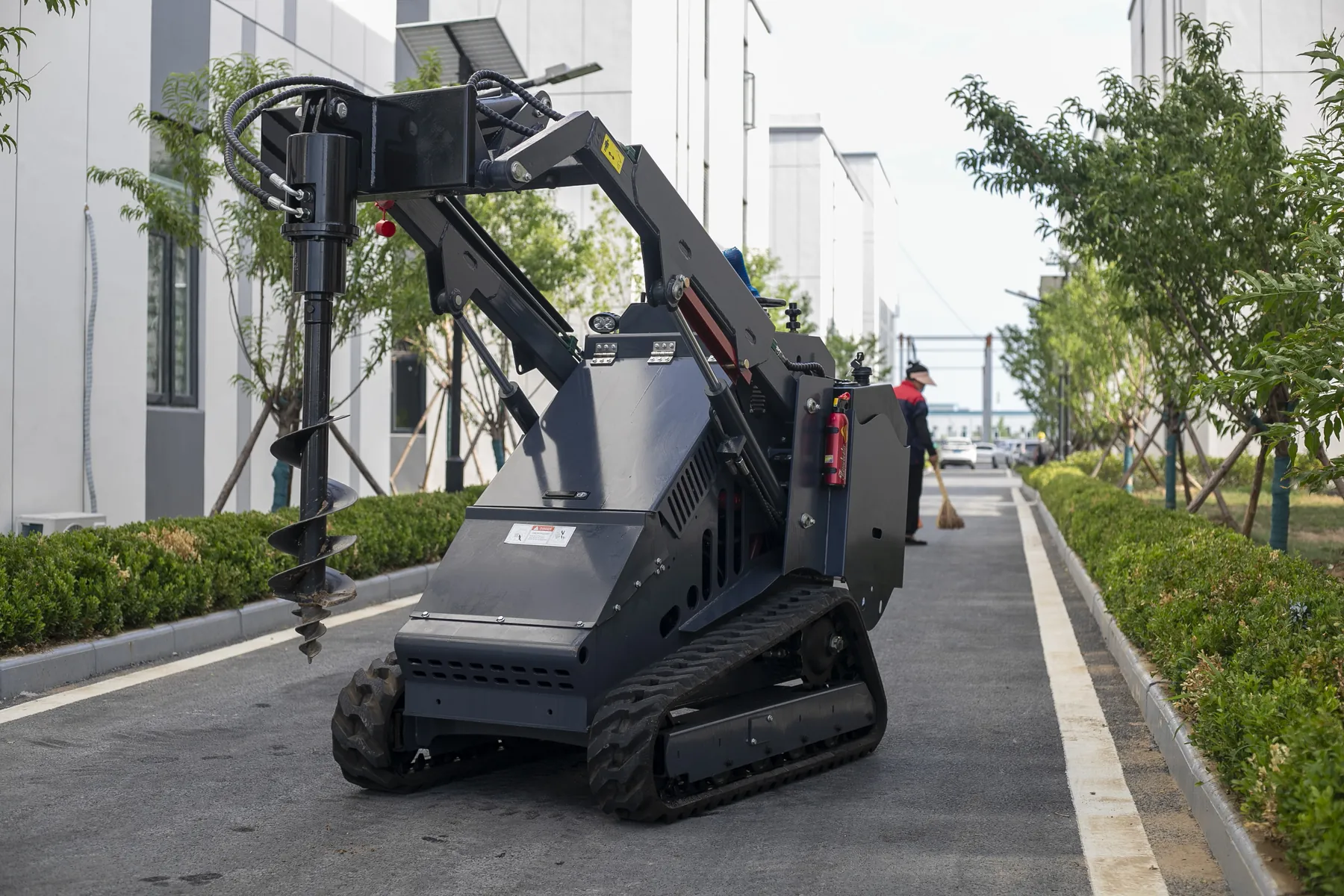

Auger
Concrete mixer bucket

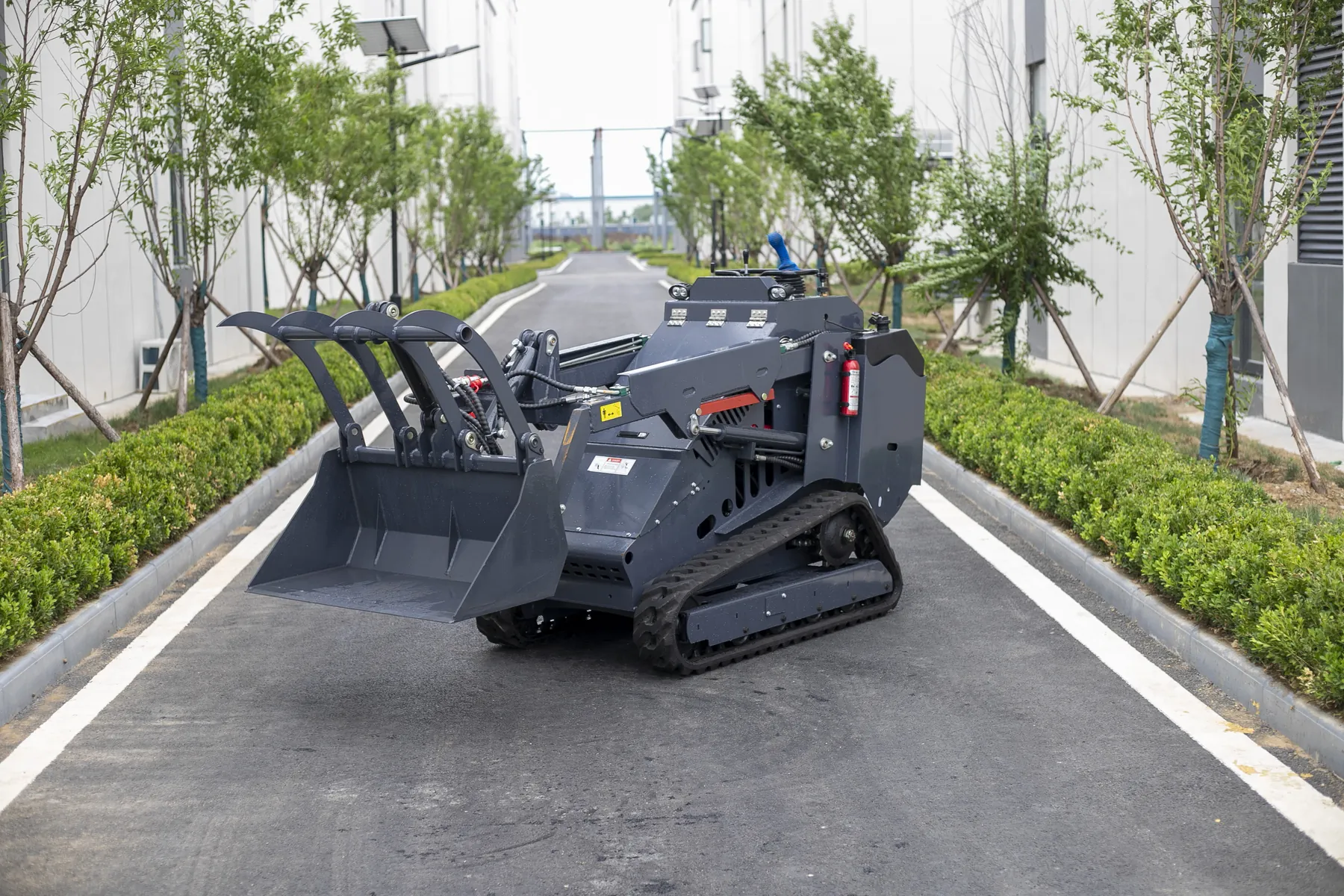

Grapple bucket
Diesel engine bay
Auxiliary hydraulics
How the BL-T750-H is built and checked
MADE AND CHECKED
IN OUR FACTORY.
Every loader is welded, painted and assembled in our own workshops in Xuzhou, Jiangsu, then run and checked before it is packed for export.
See how our loaders are made
Frames welded on the fabrication floor
Assembled one station at a time
Painted to order and ready to ship
- 01Check before start-up
Before starting the engine, we inspect the fuel tank and all pipework.
- 02Run and travel test
We run the engine and operate every movement, then drive the machine to test the travel system.
- 03Leaks, cooling and final check
We look for oil leaks, shut the machine down, inspect the cooling and finish with a last pipework check.
Shipping, warranty and documents
FROM OUR FLOOR
TO YOUR SITE.
How the BL-T750-H reaches you, and what happens after it arrives.
How buying worksWarranty and parts
12 months
The whole machine is covered. Send the model, serial number and a photo or video, and our team guides the fix and ships the parts.
Warranty and serviceDocuments
All downloadsQuestions about the BL-T750-H
ASKED &
ANSWERED.
Not answered here? Ask the team that builds the machines.
More questionsWhich attachments suit this loader?
Most attachments mount on the quick-attach plate and run from the auxiliary hydraulic lines. Hydraulic flow differs from model to model, so we confirm which attachments suit this loader when we quote it.
See all attachmentsCan I choose the engine and the colour?
Where the specification lists more than one engine under Engine options, you choose one when you order. Loaders are painted to order, so tell us the colour you want.
How is the loader shipped?
By sea in a 20GP or 40HQ container. A 20GP takes six of our 360, 390, 460, 490 or 750 sizes, or four of the 1000 size. A 40HQ fitted with loading racks takes up to 30 of the 360 size, 22 to 24 of the others, or 10 of the 1000 size. Attachments change the plan, which we confirm with your order.
Container loading for every modelWhat happens if something goes wrong?
Send us the model, the serial number and a photo or short video. Our team guides the fix remotely and ships the parts you need under the whole-machine warranty.
Warranty and partsRequest a quote for the BL-T750-H
LET’S FIND
YOUR FIT.
Tell us where the machine will work and what it needs to do. We reply with a quotation, the configuration we suggest and the shipping plan.
- WhatsApp+86 158 5249 9415
- Emailinfo@boblift.com
- Rated load
- 410 kg
- Bucket capacity
- 0.15 m³
- Engine power
- 18.6 kW
Enquiring about: BL-T750-H Tracked Stand-on Mini Skid Steer Loader
EXPLORE YOUR OPTIONS
MORE FROM THE RANGE.
| Specification | BL-S750-H | BL-T750-H This model | BL-T1000-H |
|---|---|---|---|
| Rated load | 400 kg | 410 kg | 500 kg |
| Bucket capacity | 0.15 m³ | 0.15 m³ | 0.19 m³ |
| Engine power | 18.6 kW | 18.6 kW | 17.8 kW |
| Machine weight | 1,000 kg | 1,100 kg | 1,250 kg |
| Machine width | 985 mm | 985 mm | 960 mm |
| Working height | 2,140 mm | 2,230 mm | 2,102 mm |
