MINI SKID STEER LOADER
BL-T390-CTracked Seated Mini Skid Steer Loader
TTracked390Size classCCabin · seatedHow model names work
<p>BL-T390-C Tracked Seated Mini Skid Steer Loader with a 250 kg rated load, a 0.1 m³ bucket and a 7.6 kW engine. Explore published specifications and discuss your application with BOB-LIFT.</p>
- Rated load
- 250 kg
- Bucket capacity
- 0.1 m³
- Engine power
- 7.6 kW
Or message usWhatsApp +86 158 5249 9415info@boblift.com
- 12‑month whole-machine warranty
- Ships in 8–30 working days
- Order from 1 unit
- Shipping & warranty
- Catalogue PDF · 5.5 MB
Confirm your configuration and current availability with our team.
BL-T390-C overview
A CLOSER LOOK
AT YOUR NEXT MACHINE.
BL-T390-C seated tracked skid steer loader — 250 kg rated load, 300 kg lifting capacity, 955 mm overall width.
Watch it work 3 videos
The BL-T390-C is a tracked mini skid steer loader with a seat, in a body 955 mm wide. It is aimed at gardeners, small farms and landscapers who work on soft or uneven ground, where tracks spread the weight and keep traction on lawns, soil and slopes, and who would rather sit than stand.
Its 1,050 mm bucket holds 0.1 m³ and reaches a 1,830 mm working height. The rated load is 250 kg and the lifting capacity 300 kg. A single-cylinder engine runs on petrol or diesel: KOOP (7.6 kW), Rato (7.9 kW) or Briggs & Stratton (9.92 kW). The machine weighs 750 kg, travels at up to 5 km/h and is rated for 25° slopes.
If your ground is paved, the BL-S390-C wheeled seated loader shares its bucket and engines. If standing is fine, the BL-T360-H is 930 mm wide, against 1,050 mm at this loader’s bucket, and is rated for 30° slopes, with a lower 200 kg rated load. The BL-T490-C keeps the seat and tracks and adds lifting capacity.
- 1,830 mm working height
130 mm more working height than the BL-T490-C seated tracked loader.
- 300 kg lifting capacity
With 250 kg rated load and a 0.1 m³ bucket.
- 750 kg machine
Up to 5 km/h, rated for 25° slopes.
BL-T390-C specifications
KNOW YOUR
MACHINE.
Figures from the BOB-LIFT technical sheet supplied for this range. Confirm the final specification before ordering.
Engine brand, attachments and configuration are set per order. Tell us your preferred engine and the work you have in mind.
Compare every loaderPerformance
- Rated load
- 250 kg
- Lifting capacity
- 300 kg
- Bucket capacity
- 0.1 m³
- Max travel speed
- 5 km/h
- Hydraulic pressure
- 16 MPa
- Gradeability
- 25°
- Machine weight
- 750 kg
Build
- Running gear
- Rubber tracks
- Operator station
- Seat
- Controls
- Joystick operation
- Body material
- Manganese steel
- Bucket material
- Manganese steel
Details
- Power by engine
- KOOP 7.6 kW / Rato 7.9 kW / Briggs & Stratton 9.92 kW
Engine
- Engine options
- KOOP / Rato / Briggs & Stratton
- Engine power
- 7.6 kW
- Engine type
- 1-cylinder, 4-stroke
- Fuel
- Petrol / diesel
- Fuel tank
- 5 L
- Starting
- Electric start
- Emission standard
- EPA Tier 4 / EU Stage V
Dimensions
- Working height
- 1,830 mm
- Max dumping height
- 1,404 mm
- Height with arms raised
- 2,488 mm
- Length with bucket
- 2,281 mm
- Length without bucket
- 1,880 mm
- Machine width
- 955 mm
- Bucket width
- 1,050 mm
- Overall height
- 1,300 mm
- Ground clearance
- 219 mm
Attachments for the BL-T390-C
ONE LOADER.
MANY JOBS.
The bucket comes off the quick-attach plate and a fork, auger or breaker goes on. These attachments suit this loader's work; we confirm each one against its hydraulic flow when we quote.
See all 26 attachments
4-in-1 bucketDig, grab, level and doze
Pallet forksPallets, bagged cement, bales
AugerHoles for posts and planting
Hydraulic breakerConcrete, paving and frozen ground- TrencherNarrow trenches for cables and pipes
- SweeperYards, roads and light snow
BL-T390-C photographs
SEE IT
UP CLOSE.
4 photographs. Select one to view it larger.
Operator controls

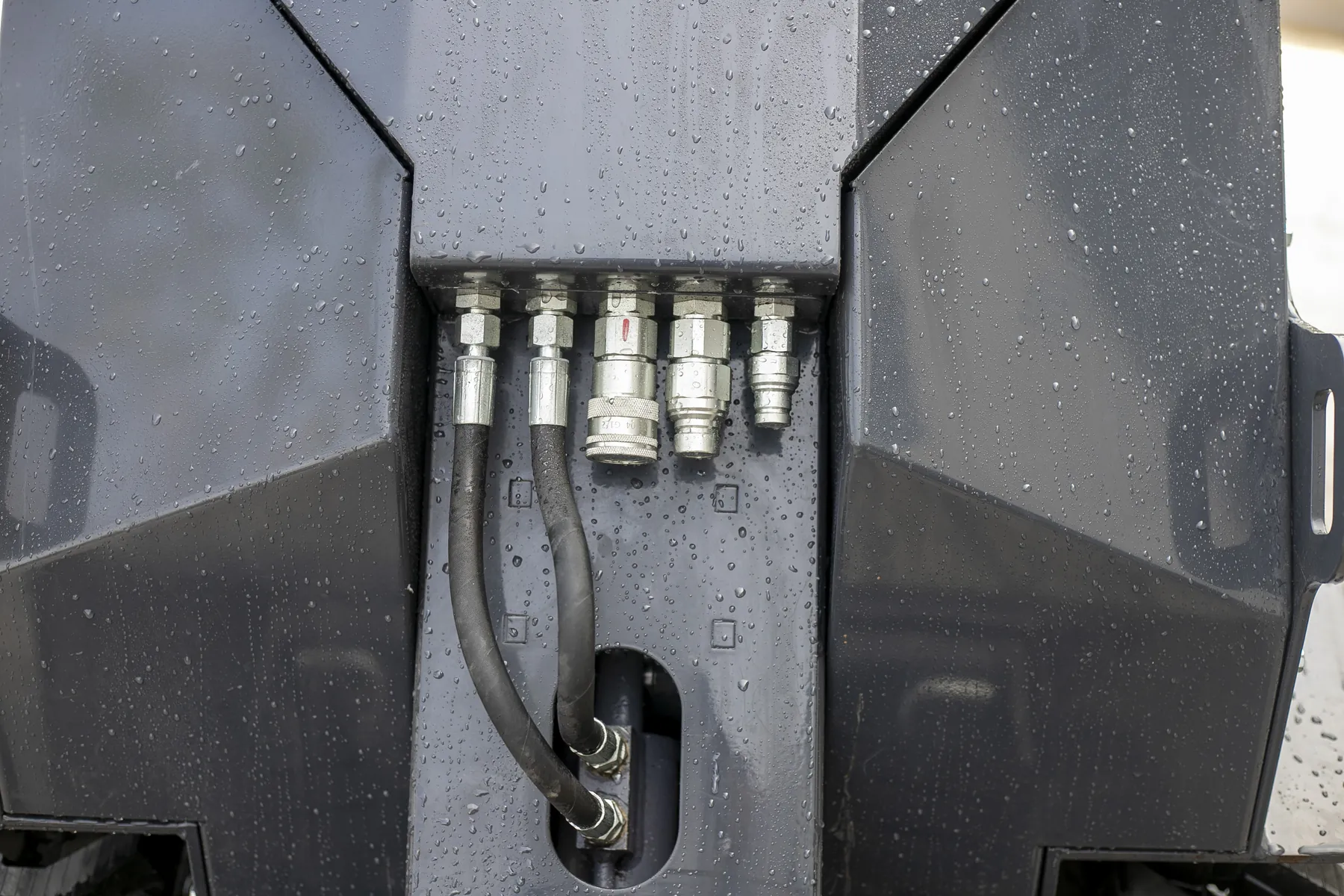

Auxiliary hydraulic couplers

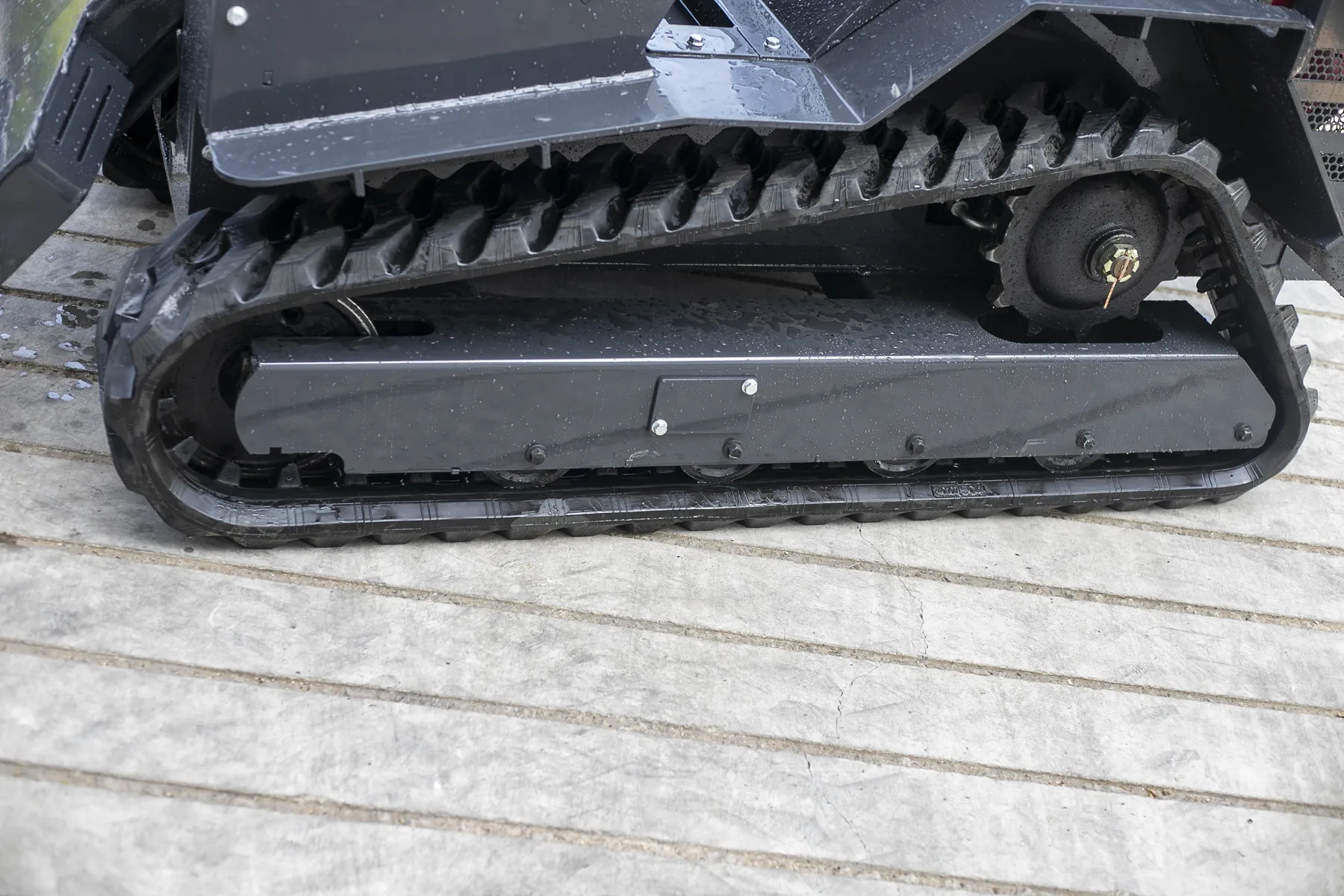

Rubber track
Rear tow hitch
How the BL-T390-C is built and checked
MADE AND CHECKED
IN OUR FACTORY.
Every loader is welded, painted and assembled in our own workshops in Xuzhou, Jiangsu, then run and checked before it is packed for export.
See how our loaders are made
Frames welded on the fabrication floor
Assembled one station at a time
Painted to order and ready to ship
- 01Check before start-up
Before starting the engine, we inspect the fuel tank and all pipework.
- 02Run and travel test
We run the engine and operate every movement, then drive the machine to test the travel system.
- 03Leaks, cooling and final check
We look for oil leaks, shut the machine down, inspect the cooling and finish with a last pipework check.
Shipping, warranty and documents
FROM OUR FLOOR
TO YOUR SITE.
How the BL-T390-C reaches you, and what happens after it arrives.
How buying worksWarranty and parts
12 months
The whole machine is covered. Send the model, serial number and a photo or video, and our team guides the fix and ships the parts.
Warranty and serviceDocuments
All downloadsQuestions about the BL-T390-C
ASKED &
ANSWERED.
Not answered here? Ask the team that builds the machines.
More questionsWhich attachments suit this loader?
Most attachments mount on the quick-attach plate and run from the auxiliary hydraulic lines. Hydraulic flow differs from model to model, so we confirm which attachments suit this loader when we quote it.
See all attachmentsCan I choose the engine and the colour?
Where the specification lists more than one engine under Engine options, you choose one when you order. Loaders are painted to order, so tell us the colour you want.
How is the loader shipped?
By sea in a 20GP or 40HQ container. A 20GP takes six of our 360, 390, 460, 490 or 750 sizes, or four of the 1000 size. A 40HQ fitted with loading racks takes up to 30 of the 360 size, 22 to 24 of the others, or 10 of the 1000 size. Attachments change the plan, which we confirm with your order.
Container loading for every modelWhat happens if something goes wrong?
Send us the model, the serial number and a photo or short video. Our team guides the fix remotely and ships the parts you need under the whole-machine warranty.
Warranty and partsRequest a quote for the BL-T390-C
LET’S FIND
YOUR FIT.
Tell us where the machine will work and what it needs to do. We reply with a quotation, the configuration we suggest and the shipping plan.
