BL-S390-C wheeled seated mini skid steer loader in red, front three-quarter view outdoors

MINI SKID STEER LOADER

BL-S390-CWheeled Seated Mini Skid Steer Loader

SWheeled390Size classCCabin · seatedHow model names work

<p>BL-S390-C Wheeled Seated Mini Skid Steer Loader with a 260 kg rated load, a 0.1 m³ bucket and a 7.6 kW engine. Explore published specifications and discuss your application with BOB-LIFT.</p>

Rated load
260 kg
Bucket capacity
0.1 m³
Engine power
7.6 kW
Request a quote Explore the details

Or message usWhatsApp +86 158 5249 9415info@boblift.com

Confirm your configuration and current availability with our team.

BL-S390-C overview

A CLOSER LOOK
AT YOUR NEXT MACHINE.

Watch it work 3 videos

The BL-S390-C is a seated mini skid steer loader on rubber tyres, made for hard ground. Yards, warehouses, paved courtyards, car parks and farm concrete are its ground: tyres roll better than tracks there, and an operator who spends the shift on the machine gets a seat.

On firm surfaces it travels at up to 6 km/h, faster than its tracked twin. The single-cylinder engine runs on petrol or diesel: KOOP (7.6 kW), Rato (7.9 kW) or Briggs & Stratton (9.92 kW). The BL-S390-C is rated for 260 kg per 0.1 m³ bucket, the highest rated load of our seated models, and lifts up to 290 kg. It is 959 mm wide, 1,050 mm at the bucket, and weighs 650 kg. Joystick controls are standard.

The tracked BL-T390-C seated mini skid steer loader uses the same bucket and engines for soil, lawns and mud. For more lifting capacity and power on wheels, see the BL-S490-C; its rated load is 10 kg lower, but it lifts 350 kg.

  • 260 kg rated load

    The highest rated load among the seated loaders.

  • 959 mm wide

    Under a metre across the body, with a 1,050 mm bucket.

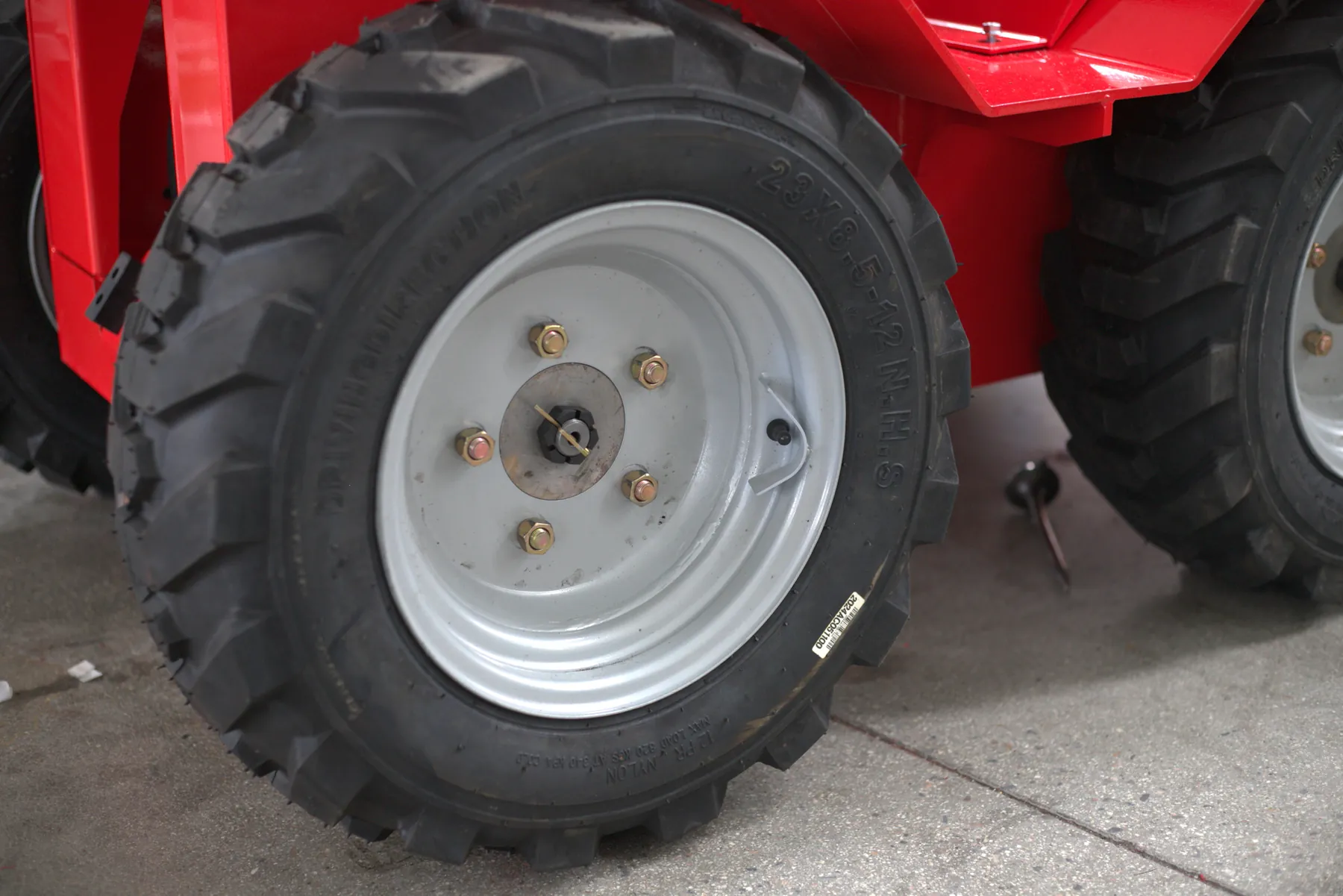

  • Rubber tyres

    Wheels for paving, yards and hard ground.

BL-S390-C specifications

KNOW YOUR
MACHINE.

Figures from the BOB-LIFT technical sheet supplied for this range. Confirm the final specification before ordering.

Engine brand, attachments and configuration are set per order. Tell us your preferred engine and the work you have in mind.

Compare every loader

Performance

Rated load
260 kg
Lifting capacity
290 kg
Bucket capacity
0.1 m³
Max travel speed
6 km/h
Hydraulic pressure
16 MPa
Gradeability
25°
Machine weight
650 kg

Build

Running gear
Rubber tyres
Operator station
Seat
Controls
Joystick operation
Body material
Manganese steel
Bucket material
Manganese steel

Details

Power by engine
KOOP 7.6 kW / Rato 7.9 kW / Briggs & Stratton 9.92 kW

Engine

Engine options
KOOP / Rato / Briggs & Stratton
Engine power
7.6 kW
Engine type
1-cylinder, 4-stroke
Fuel
Petrol / diesel
Fuel tank
5 L
Starting
Electric start
Emission standard
EPA Tier 4 / EU Stage V

Dimensions

Working height
1,600 mm
Max dumping height
1,376 mm
Height with arms raised
2,460 mm
Length with bucket
2,281 mm
Length without bucket
1,880 mm
Machine width
959 mm
Bucket width
1,050 mm
Overall height
1,300 mm
Ground clearance
193 mm

Attachments for the BL-S390-C

ONE LOADER.
MANY JOBS.

The bucket comes off the quick-attach plate and a fork, auger or breaker goes on. These attachments suit this loader's work; we confirm each one against its hydraulic flow when we quote.

See all 26 attachments

Where the BL-S390-C works

MADE FOR
THE JOB.

The applications we recommend this model for.

All applications

BL-S390-C photographs

SEE IT
UP CLOSE.

6 photographs. Select one to view it larger.

How the BL-S390-C is built and checked

MADE AND CHECKED
IN OUR FACTORY.

Every loader is welded, painted and assembled in our own workshops in Xuzhou, Jiangsu, then run and checked before it is packed for export.

See how our loaders are made
  • Welder at work on a loader frame at the BOB-LIFT factory in Xuzhou
    Frames welded on the fabrication floor
  • Technicians assembling a tracked loader frame on the BOB-LIFT assembly floor
    Assembled one station at a time
  • Finished mini skid steer loaders in customer-ordered colours at the BOB-LIFT factory
    Painted to order and ready to ship
  1. 01Check before start-up

    Before starting the engine, we inspect the fuel tank and all pipework.

  2. 02Run and travel test

    We run the engine and operate every movement, then drive the machine to test the travel system.

  3. 03Leaks, cooling and final check

    We look for oil leaks, shut the machine down, inspect the cooling and finish with a last pipework check.

Shipping, warranty and documents

FROM OUR FLOOR
TO YOUR SITE.

How the BL-S390-C reaches you, and what happens after it arrives.

How buying works

Shipping

20GP container
6 machines
40HQ container
22 machines

Ships in 8–30 working days from order. Loading figures are approximate; we confirm the plan with your order.

Containers and paperwork

Warranty and parts

12 months

The whole machine is covered. Send the model, serial number and a photo or video, and our team guides the fix and ships the parts.

Warranty and service

Questions about the BL-S390-C

ASKED &
ANSWERED.

Not answered here? Ask the team that builds the machines.

More questions

Which attachments suit this loader?

Most attachments mount on the quick-attach plate and run from the auxiliary hydraulic lines. Hydraulic flow differs from model to model, so we confirm which attachments suit this loader when we quote it.

See all attachments

Can I choose the engine and the colour?

Where the specification lists more than one engine under Engine options, you choose one when you order. Loaders are painted to order, so tell us the colour you want.

How is the loader shipped?

By sea in a 20GP or 40HQ container. A 20GP takes six of our 360, 390, 460, 490 or 750 sizes, or four of the 1000 size. A 40HQ fitted with loading racks takes up to 30 of the 360 size, 22 to 24 of the others, or 10 of the 1000 size. Attachments change the plan, which we confirm with your order.

Container loading for every model

What happens if something goes wrong?

Send us the model, the serial number and a photo or short video. Our team guides the fix remotely and ships the parts you need under the whole-machine warranty.

Warranty and parts
