FC10 promo: 1 ton wheeled mini dumper

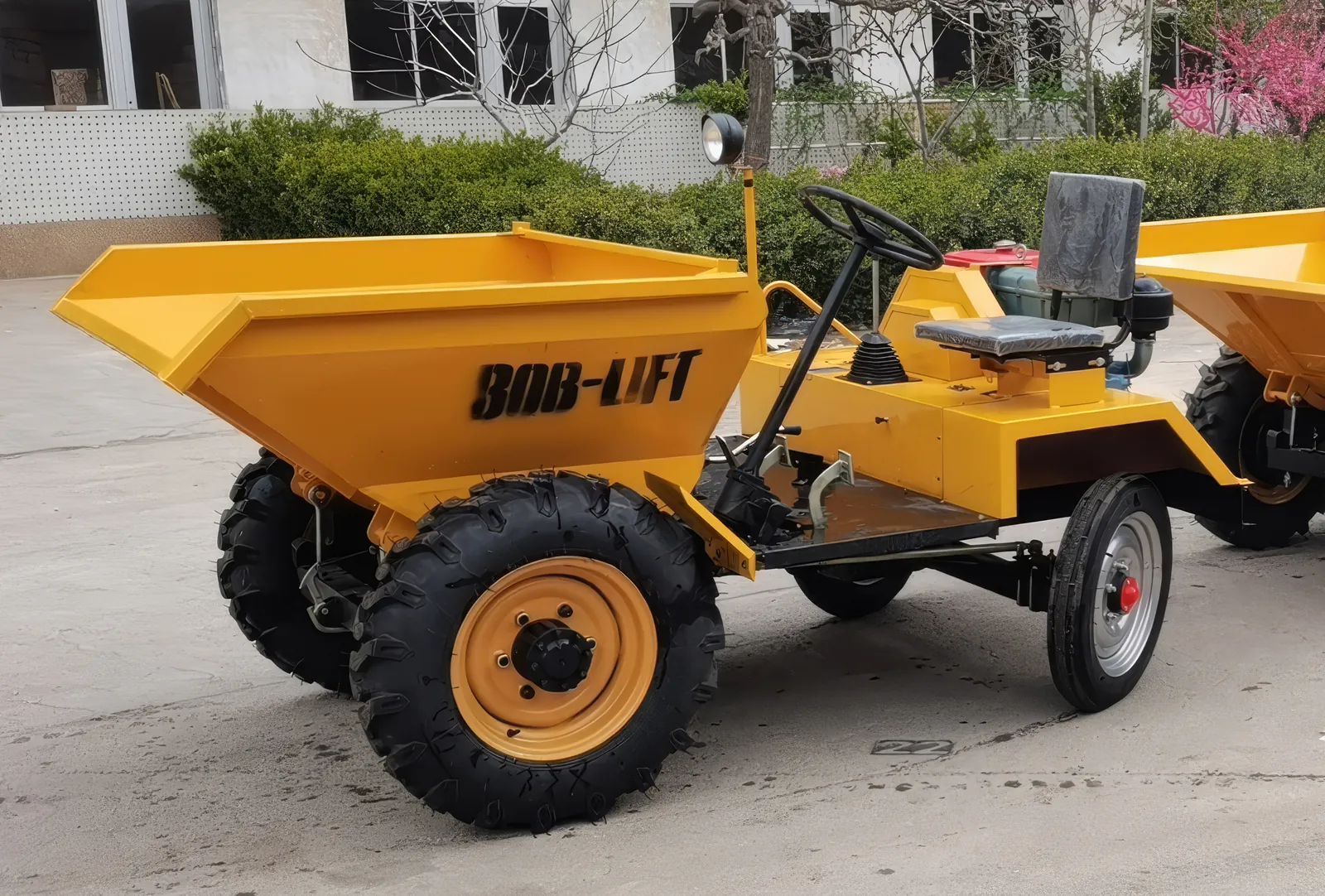

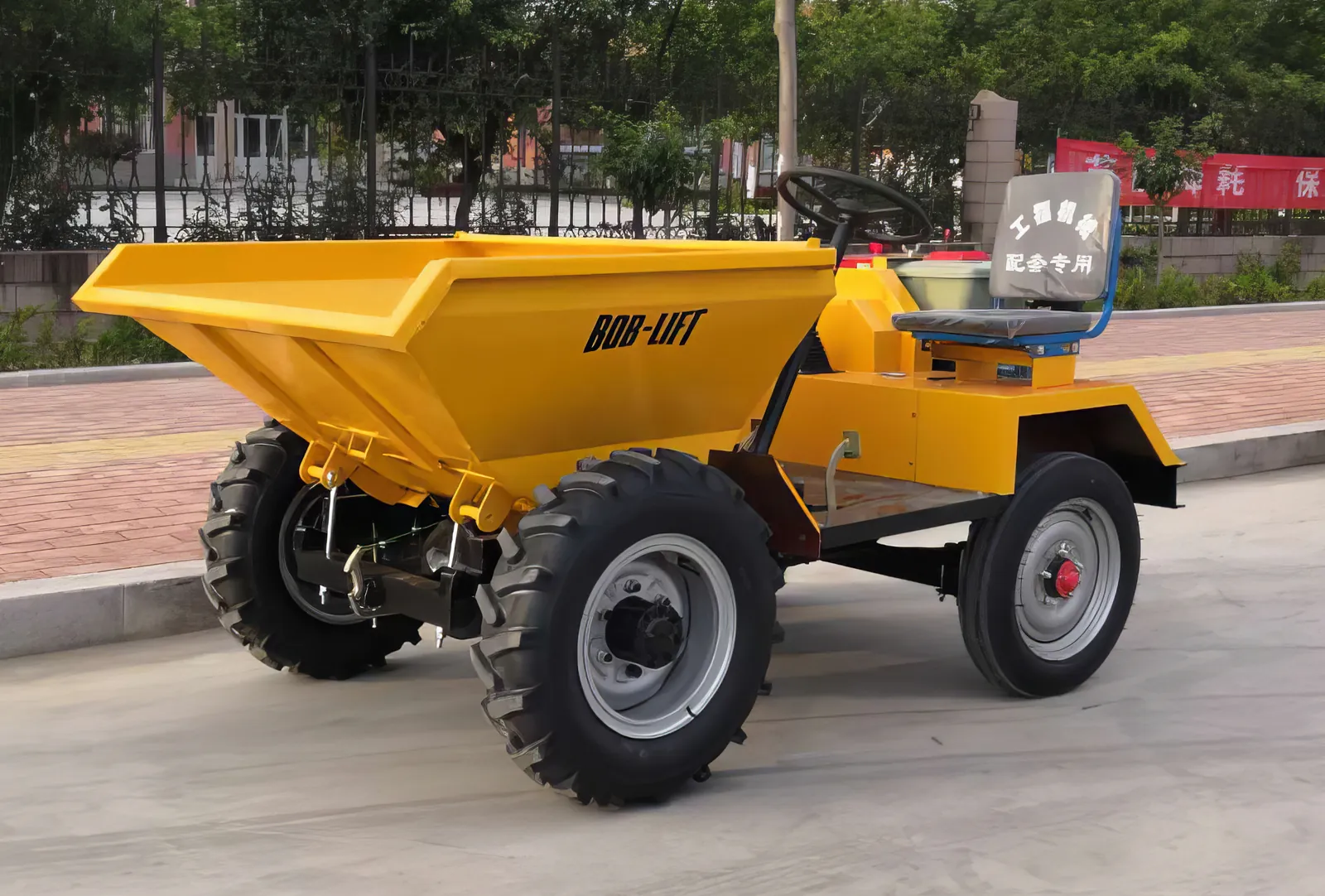

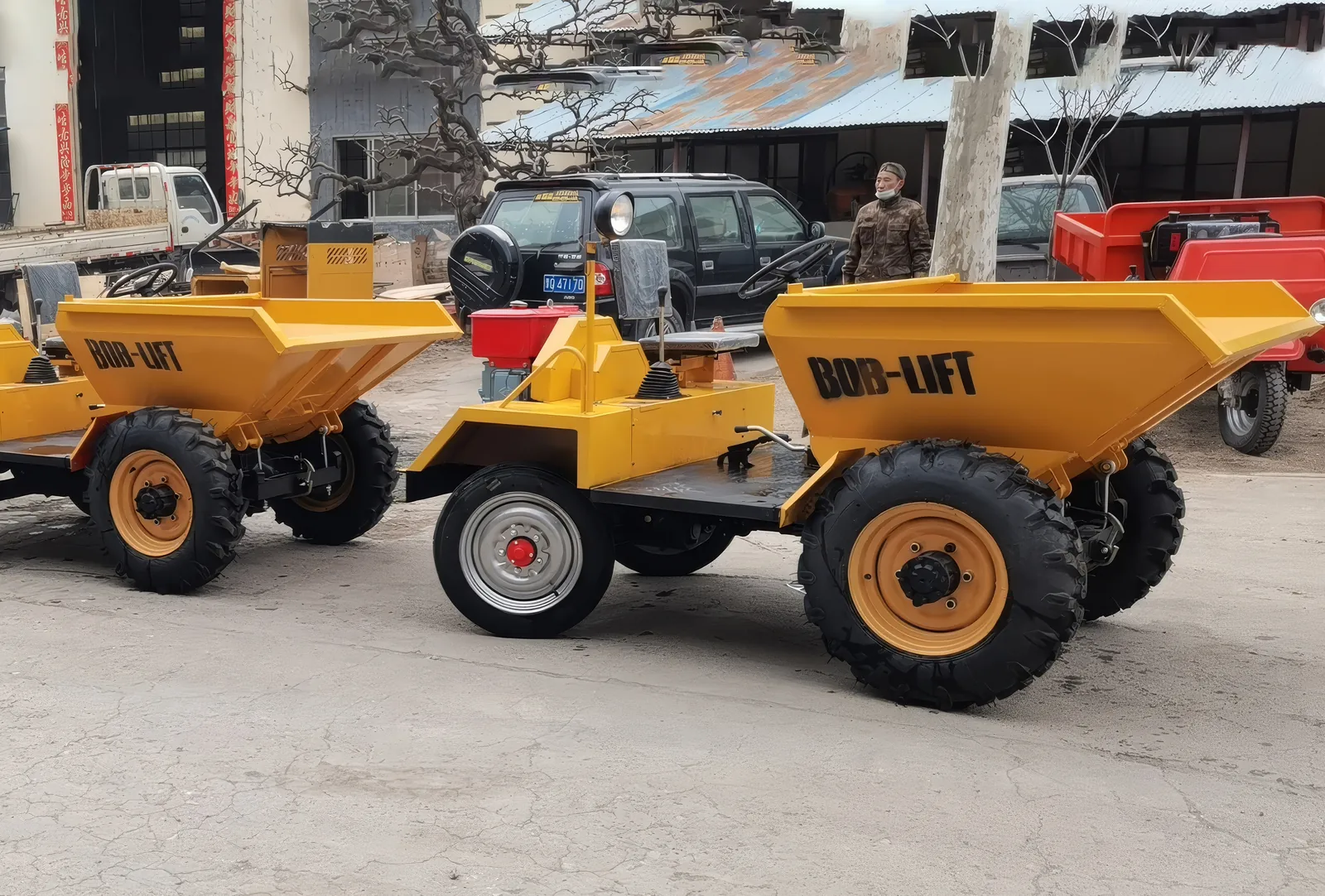

The FC10 is the entry point to our wheeled mini dumpers: a 1,000 kg payload on a frame 1,500 mm wide. It is sized for farms, orchards, smallholdings and small building sites moving feed, manure, sand, gravel or bricks along tracks and yards.

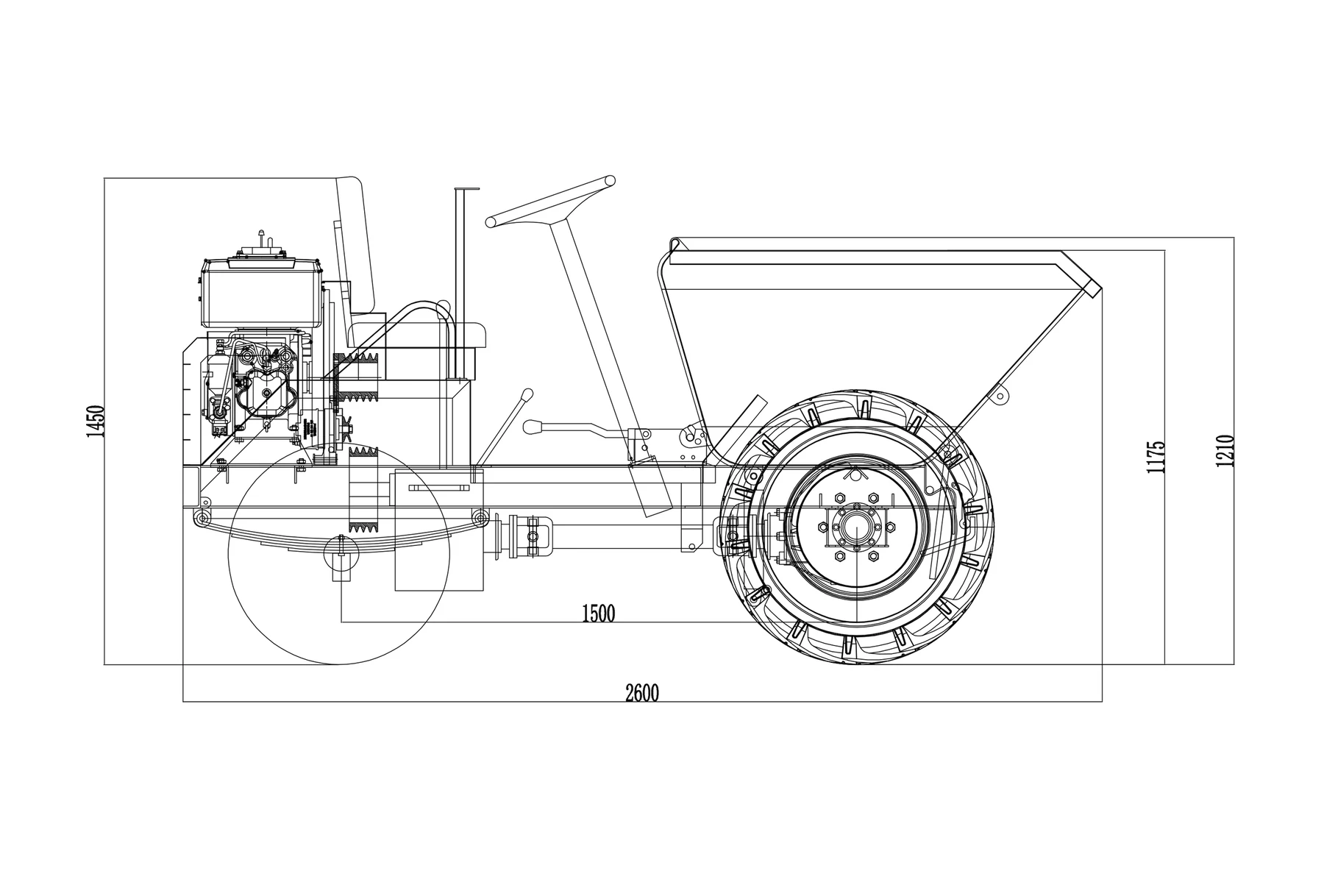

Wheels change the pace: the FC10 reaches 22 km/h, against 3 km/h for our tracked dumpers, which matters on long farm tracks. Its hopper holds 0.8 m³. A ZS1100 engine rated 12.1 kW drives two wheels (4×2). At 800 kg it is the lightest wheeled dumper we build, on a 1,500 mm wheelbase. It measures 2,600 × 1,500 × 1,450 mm and runs a 12 V electrical system.
The FY15 1.5 ton mini dumper has the same footprint and carries 1,500 kg in a 0.8 m³ hopper, the same size as the FC10’s. Choose the FC10 for lighter loads and the lowest machine weight. For garden access under 1 m, the tracked BL-T500-HD is 880 mm wide.
The entry-level model in the wheeled range, with a 0.8 m³ hopper.
The most compact wheeled dumper BOB-LIFT builds, shared with the FY15.

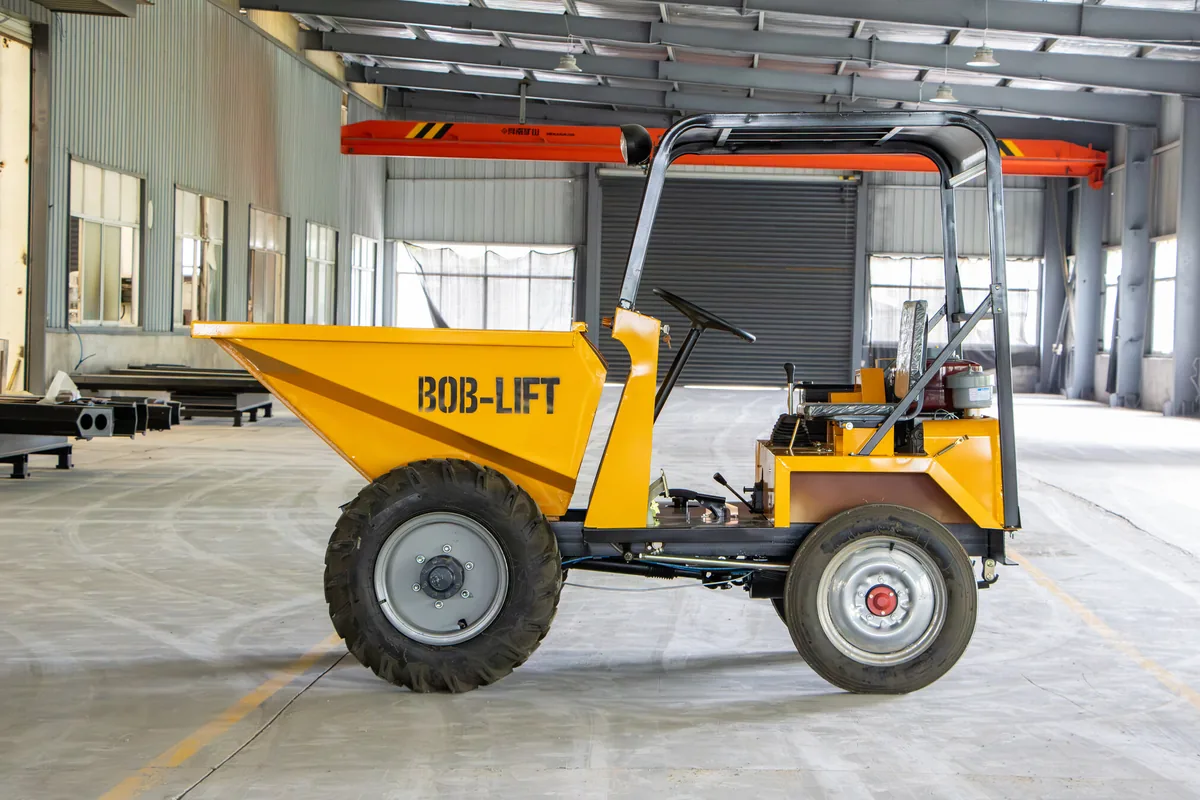

Open at 1,450 mm high, or 2,150 mm with a simple roof canopy.
KNOW YOUR
MACHINE.
Figures from the BOB-LIFT technical sheet supplied for this range. Confirm the final specification before ordering.
Compare every dumperMADE FOR
THE JOB.
The applications we recommend this model for.
All applicationsCHECKED
BEFORE IT SHIPS.
Every dumper is run and checked before it is packed for export.
About BOB-LIFT
We check the appearance of the machine.
We check the engine, the coolant, the hydraulic oil and the engine oil.
We check the tyre pressure.
We check the lights, the horn and the gauges.
We check the hydraulic speed and the oil circuit.
We check the screws and bolts across the whole machine.
FROM OUR FLOOR
TO YOUR SITE.
How the FC10 reaches you, and what happens after it arrives.

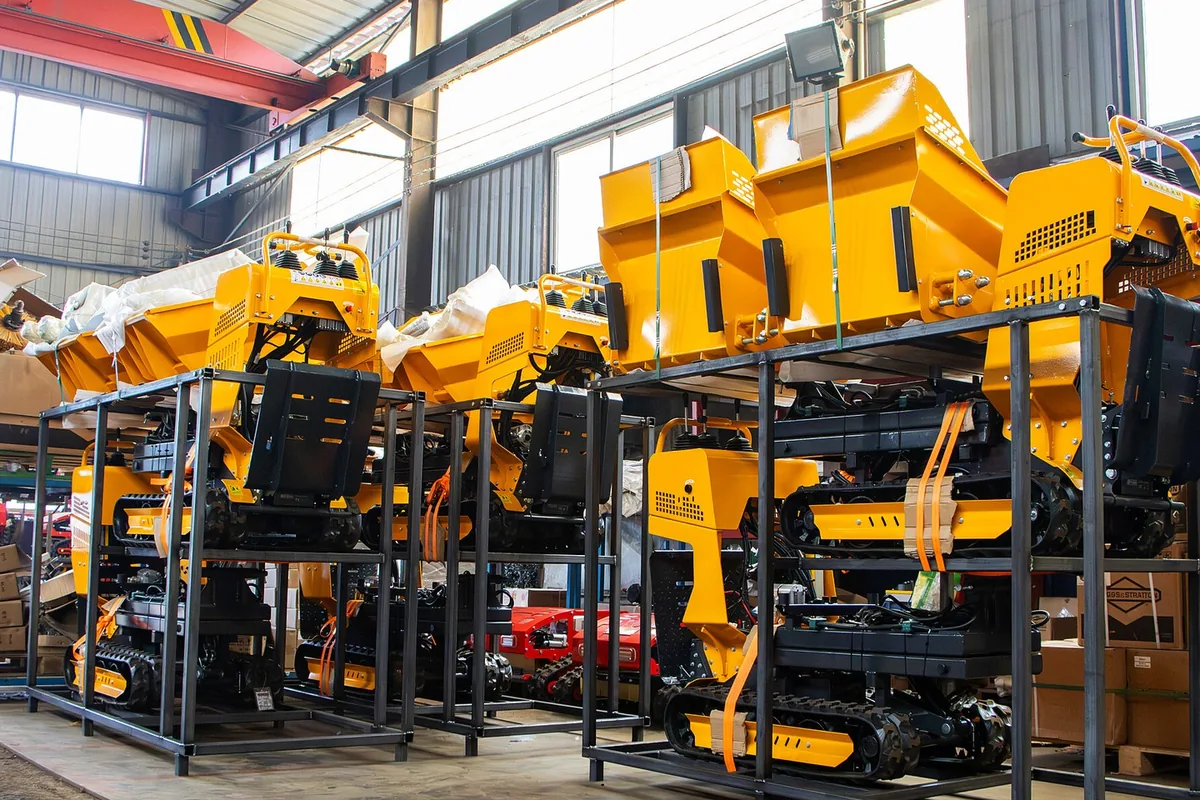

How buying worksUsually ships in 10 working days from order. Loading figures are approximate and show the highest count in our loading plans for this model, taken apart or on steel loading racks where that fits more in. The Support page gives the other counts too, and we confirm the plan with your order.
Containers and paperwork12 months
The whole machine is covered. Send the model, serial number and a photo or video, and our team guides the fix and ships the parts.
Warranty and serviceASKED &
ANSWERED.
Not answered here? Ask the team that builds the machines.
More questionsFor loose ground and ramps, the FY20-4, FY30, FY40, FY50 and FJZ30 drive all four wheels. Tell us about your site and we confirm the drive of the model we quote.
FC is our basic front-tip dumper, which tips mechanically as standard, with hydraulic tipping as an option. FY models tip hydraulically. FJZ adds a self-loading front bucket on an articulated frame. The number is the rated load in hundreds of kilograms, so the FY30 has a rated load of 3,000 kg. On the FY20, -2 means two-wheel drive (4×2) and -4 means four-wheel drive (4×4). The four-wheel-drive models are articulated; the FC10, FY15 and FY20-2 have a rigid frame. The two tracked models are named differently. In BL-T500-HD and BL-T200-HJ, BL stands for BOB-LIFT and T means tracked. The 500 is the rated load in kilograms of the BL-T500-HD, and the 200 is the mixing drum size in litres of the BL-T200-HJ. HD stands for Dumping (a tipping hopper), and HJ stands for Jiao, which means mixer.
Wheeled models come open or with a roof or cab. The specification lists the dimensions with roof / cab, and that height decides how the dumper ships.
By sea in a 20GP or 40HQ container. Taller wheeled models with a roof or cab stand above a container door, so ask us how yours will ship.
Container loading for every modelSend us the model, the serial number and a photo or short video. Our team guides the fix remotely and ships the parts you need under the whole-machine warranty.
Warranty and partsLET’S FIND
YOUR FIT.
Tell us where the machine will work and what it needs to do. We reply with a quotation, the configuration we suggest and the shipping plan.
Enquiring about: FC10 1 Ton Wheeled Mini Dumper
EXPLORE YOUR OPTIONS
| Specification | BL-T500-HD | FC10 This model | FY15 |
|---|---|---|---|
| Rated load | 500 kg | 1,000 kg | 1,500 kg |
| Hopper capacity | 0.2 m³ | 0.8 m³ | 0.8 m³ |
| Engine power | 4.8 kW | 12.1 kW | 13.2 kW |
| Machine weight | 410 kg | 800 kg | 830 kg |
| Standard dimensions | 1,570 × 880 × 1,300 mm | 2,600 × 1,500 × 1,450 mm | 2,600 × 1,500 × 1,450 mm |
| Max travel speed | 3 km/h | 22 km/h | 22 km/h |
