MATERIAL TRANSPORT / MINI DUMPER
FYHydraulic tipping151,500 kg loadHow model names work
Or message usWhatsApp +86 158 5249 9415info@boblift.com
Confirm your configuration and current availability with our team.
MOVE THE MATERIAL.
MOVE THE JOB FORWARD.
Half as much again as the FC10, in the same 2,600 × 1,500 mm footprint.
The same 0.8 m³ hopper capacity as the FC10, with 1.1 kW more engine power.

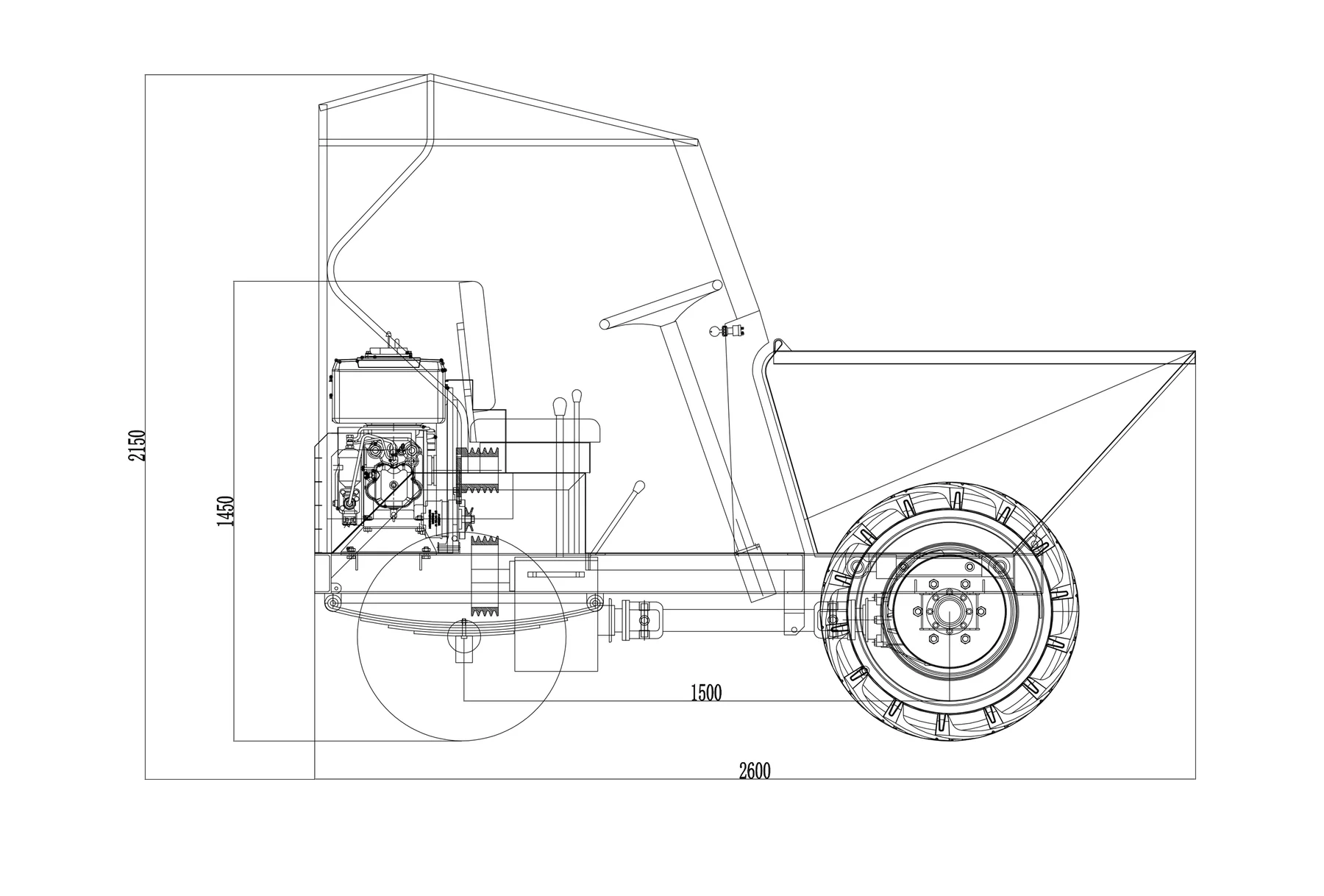

Open at 1,450 mm high, 2,150 mm with roof or cab.

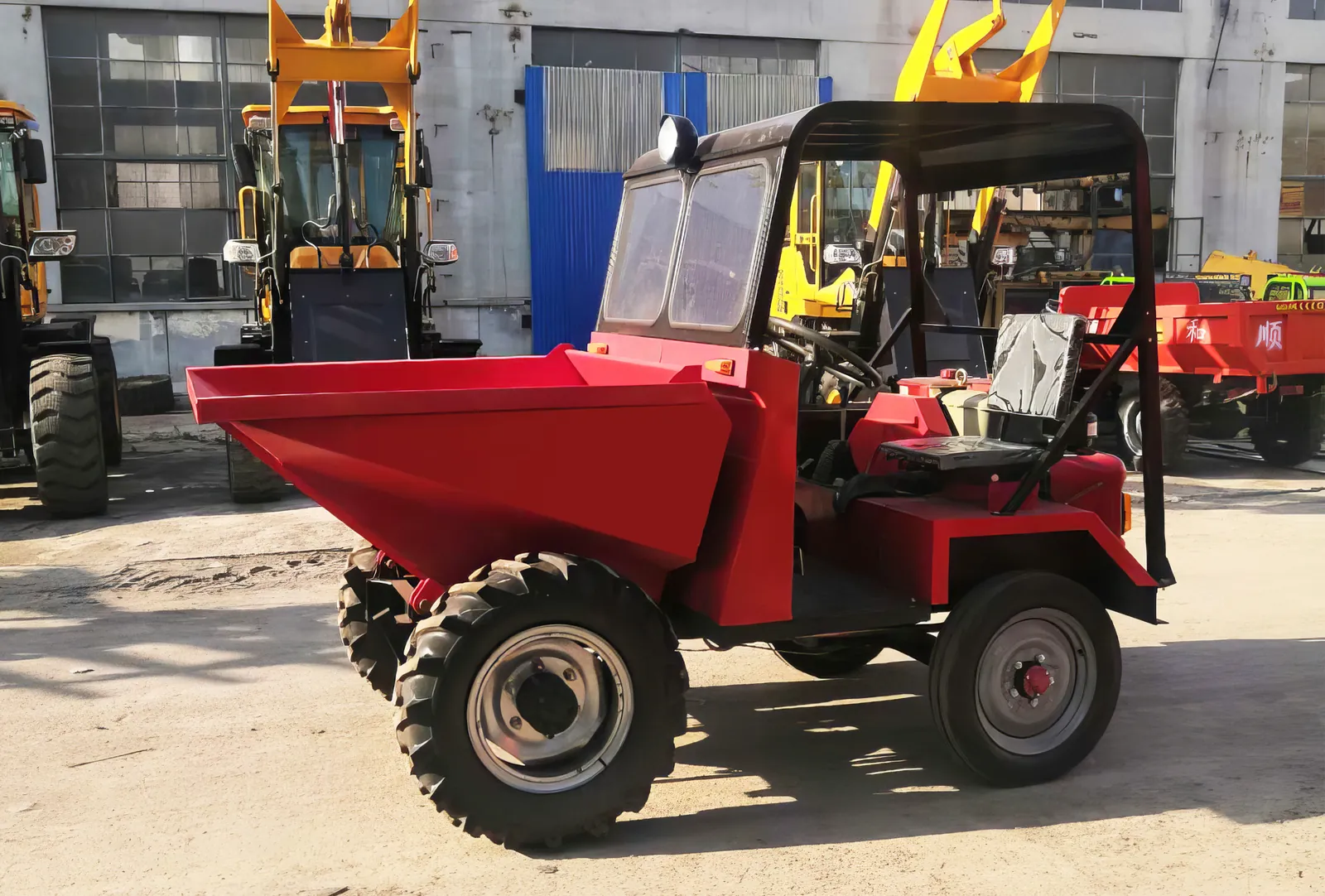

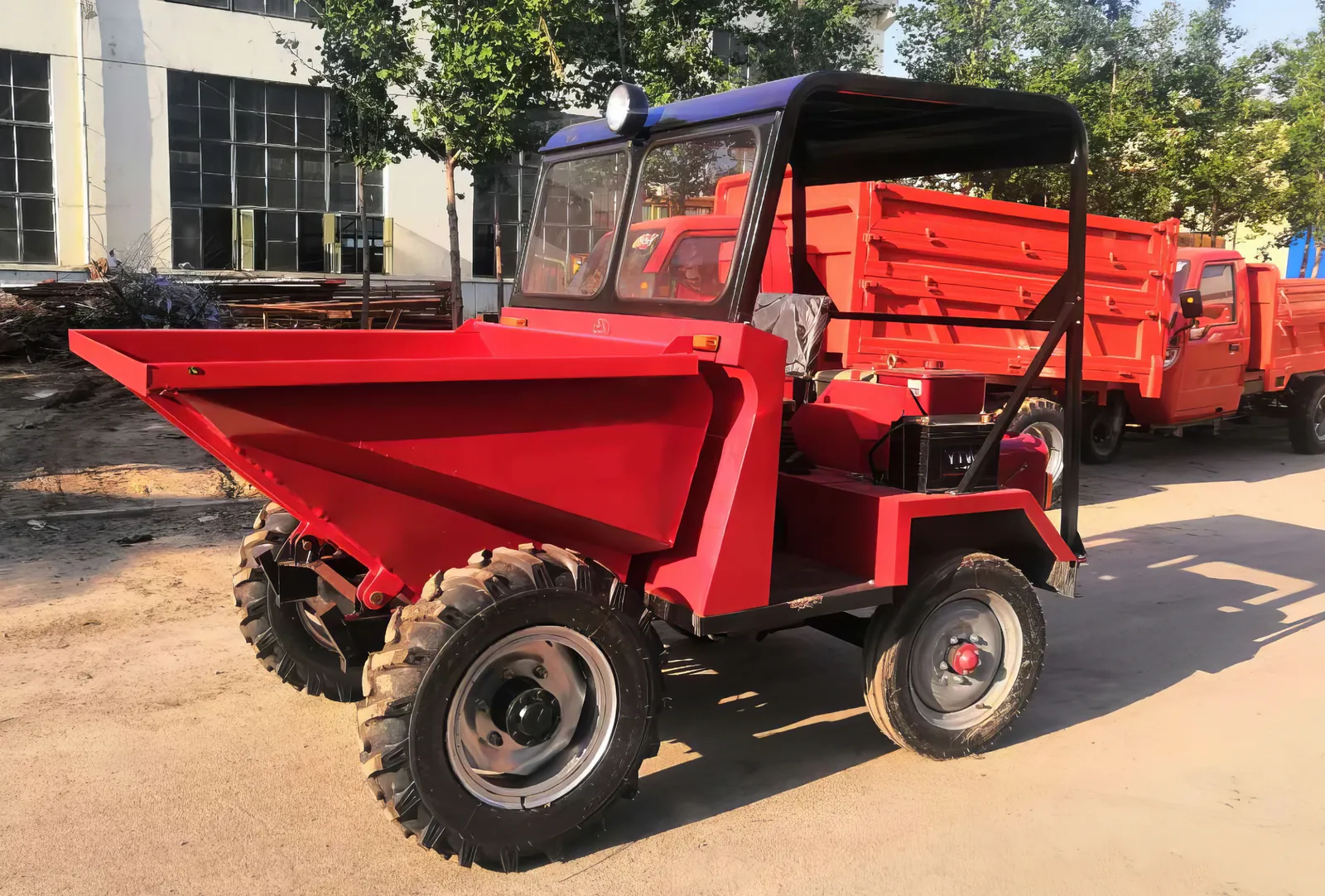

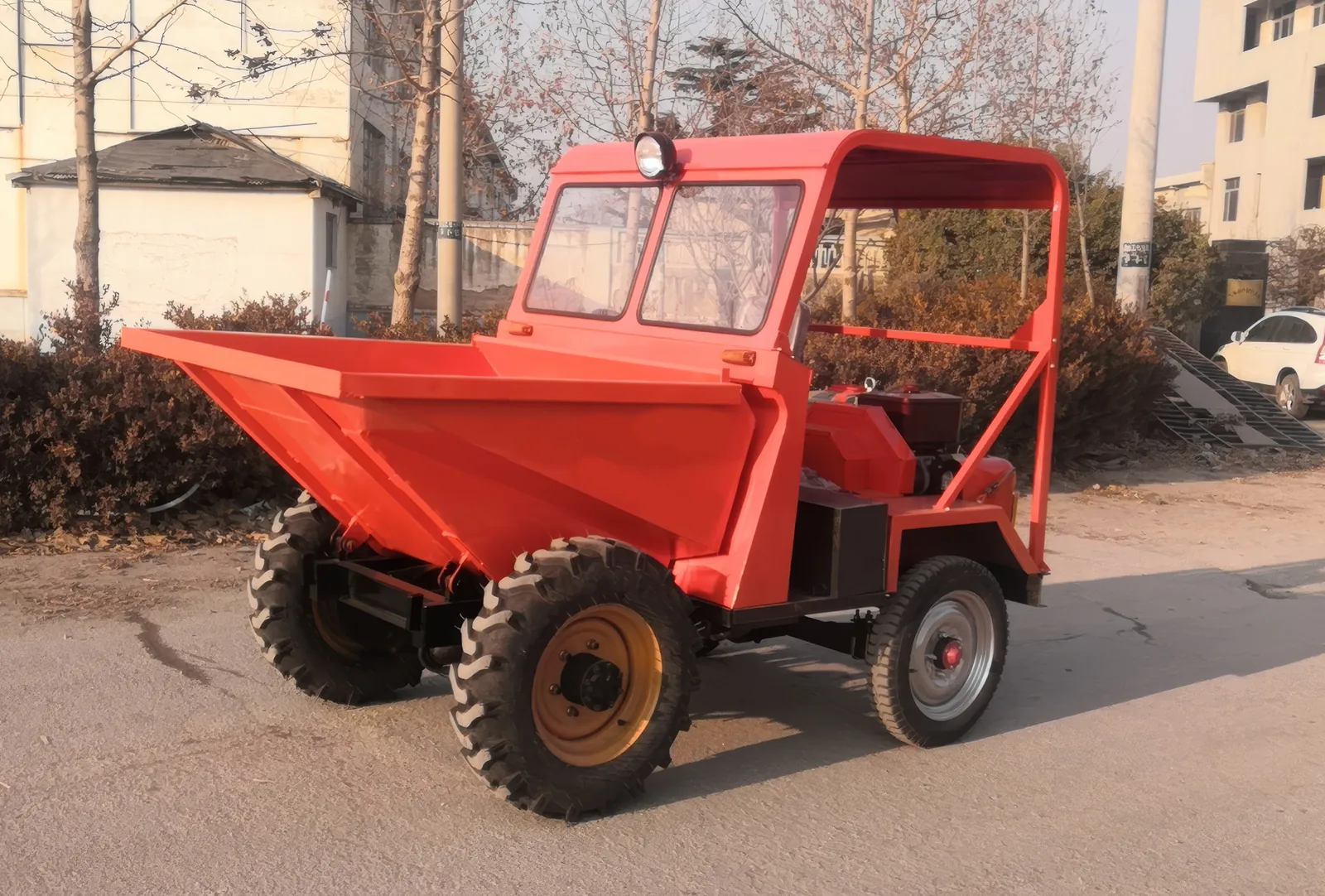

The FY15 is a 1.5 ton mini dumper on the same 1,500 mm wide frame as our 1-ton FC10. It is aimed at orchards, livestock farms, nurseries and small contractors who move heavier material such as wet soil, manure or aggregate, and want fewer trips without stepping up to a larger site dumper.
The FY15 weighs 830 kg, only 30 kg more than the FC10, yet carries 500 kg more per trip. Its 0.8 m³ hopper is the same size as the FC10’s. A ZS1105 engine rated 13.2 kW drives two wheels (4×2) at up to 22 km/h. It shares the FC10’s 2,600 × 1,500 × 1,450 mm dimensions, 1,500 mm wheelbase and 12 V electrical system, so the two have the same footprint.
Next up the range is the FY20-2 2 ton mini dumper, rated for 2,000 kg. If your loads stay under 1,000 kg, the FC10 is 30 kg lighter.
KNOW YOUR
MACHINE.
Figures from the BOB-LIFT technical sheet supplied for this range. Confirm the final specification before ordering.
Compare every dumperMADE FOR
THE JOB.
The applications we recommend this model for.
All applicationsCHECKED
BEFORE IT SHIPS.
Every dumper is run and checked before it is packed for export.
About BOB-LIFT
We check the appearance of the machine.
We check the engine, the coolant, the hydraulic oil and the engine oil.
We check the tyre pressure.
We check the lights, the horn and the gauges.
We check the hydraulic speed and the oil circuit.
We check the screws and bolts across the whole machine.
FROM OUR FLOOR
TO YOUR SITE.
How the FY15 reaches you, and what happens after it arrives.
How buying worksUsually ships in 10 working days from order. Loading figures are approximate and show the highest count in our loading plans for this model, taken apart or on steel loading racks where that fits more in. The Support page gives the other counts too, and we confirm the plan with your order.
Containers and paperwork12 months
The whole machine is covered. Send the model, serial number and a photo or video, and our team guides the fix and ships the parts.
Warranty and serviceASKED &
ANSWERED.
Not answered here? Ask the team that builds the machines.
More questionsFor loose ground and ramps, the FY20-4, FY30, FY40, FY50 and FJZ30 drive all four wheels. Tell us about your site and we confirm the drive of the model we quote.
FC is our basic front-tip dumper, which tips mechanically as standard, with hydraulic tipping as an option. FY models tip hydraulically. FJZ adds a self-loading front bucket on an articulated frame. The number is the rated load in hundreds of kilograms, so the FY30 has a rated load of 3,000 kg. On the FY20, -2 means two-wheel drive (4×2) and -4 means four-wheel drive (4×4). The four-wheel-drive models are articulated; the FC10, FY15 and FY20-2 have a rigid frame. The two tracked models are named differently. In BL-T500-HD and BL-T200-HJ, BL stands for BOB-LIFT and T means tracked. The 500 is the rated load in kilograms of the BL-T500-HD, and the 200 is the mixing drum size in litres of the BL-T200-HJ. HD stands for Dumping (a tipping hopper), and HJ stands for Jiao, which means mixer.
Wheeled models come open or with a roof or cab. The specification lists the dimensions with roof / cab, and that height decides how the dumper ships.
By sea in a 20GP or 40HQ container. Taller wheeled models with a roof or cab stand above a container door, so ask us how yours will ship.
Container loading for every modelSend us the model, the serial number and a photo or short video. Our team guides the fix remotely and ships the parts you need under the whole-machine warranty.
Warranty and partsLET’S FIND
YOUR FIT.
Tell us where the machine will work and what it needs to do. We reply with a quotation, the configuration we suggest and the shipping plan.
Enquiring about: FY15 1.5 Ton Wheeled Mini Dumper
EXPLORE YOUR OPTIONS
| Specification | FC10 | FY15 This model | FY20-2 |
|---|---|---|---|
| Rated load | 1,000 kg | 1,500 kg | 2,000 kg |
| Hopper capacity | 0.8 m³ | 0.8 m³ | 1.0 m³ |
| Engine power | 12.1 kW | 13.2 kW | 17 kW |
| Machine weight | 800 kg | 830 kg | 900 kg |
| Standard dimensions | 2,600 × 1,500 × 1,450 mm | 2,600 × 1,500 × 1,450 mm | 3,000 × 1,600 × 1,480 mm |
| Max travel speed | 22 km/h | 22 km/h | 22 km/h |
